L-Shaped Barns

Center aisle modular barn to much room? Shed row barn not enough room? A Horizon Structures prefab L- shaped horse barn is a great middle of the road for you and your horses. This beautiful alternative will liven the aesthetics of your property while giving you the space needed for your equestrian needs.

Brad of Horizon says, "I like the L-shape because it allows you to get the space you need at an affordable price. And although a loft is great, I like the idea of storing hay at ground level. Running up and down the stairs twice a day is something I can do without!"

You can even add an overhang to decrease the mud in high-traffic areas and give your horses the freedom of turn-out without worrying about leaving them exposed to the elements. It also keeps stalls clean and saves money. That is a triple win scenario, if we ever saw one.



Request Barn Pricing

Body Tabs

Features
  • Pressure Treated 6x6 Perimeter
  • Steel Re-enforced Corners with Built-In Tow Hooks
  • 2x4 Oak Post & Beam Frame
  • Board and Batten White Pine Exterior (unfinished)
  • 4’ High Oak Kick Board
  • 2x4 Rafters 16’’ OC
  • 7/16’’ OSB Roof Sheathing
  • “Quaker” Style Roof
  • 30 Yr. Architectural Shingles
  • All Hardware Horse Head Door Latches, Hinges, etc.
  • Steel Re-enforced Corners with Built-In Tow Hooks
  • Cypress Board & Batten Exterior (unfinished)
  • 4' Oak Kickboard
  • Quaker Style Roof
  • All Hardware: Horse Head Door Latches, Hinges, etc.
  • Stalls Include:
  • Dutch Door with Steel Chew Guard
  • Wood Frame Slider Window with Powder-Coated Steel Bars
  • Solid or Powder-Coated Steel Grill Partition
  • Tack/Feed Room Includes:
  • Lockable Service Door
  • Wood Frame Slider Window
  • 5/8" Plywood Floor
  • Steel Re-enforced Corners with Built-In Tow Hooks
  • 7/16" LP SmartSide (with Silver Tech) Wood Exterior Siding (painted)
  • 4' Oak Kickboard
  • Quaker Style Roof
  • All Hardware: Horse Head Door Latches, Hinges, etc.
  • Stalls Include:
  • Dutch Door with Steel Chew Guard
  • Metal Frame Window with Screen & Powder-Coated Steel Bars
  • Solid or Powder-Coated Steel Grill Partition
  • Tack/Feed Room Includes:
  • Lockable Service Door
  • Metal Frame Window with Screen
  • 5/8" Smart Finish Floor

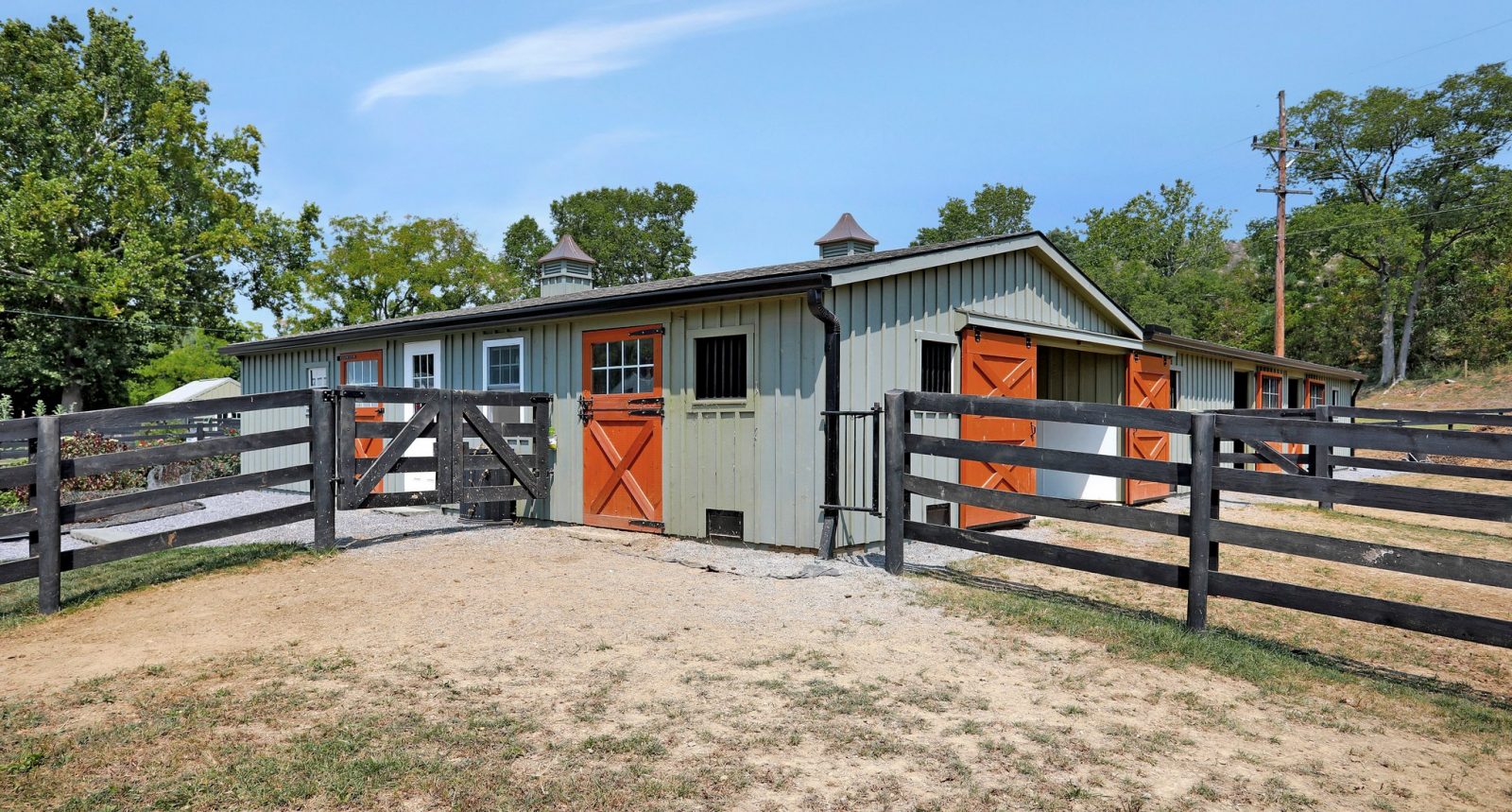

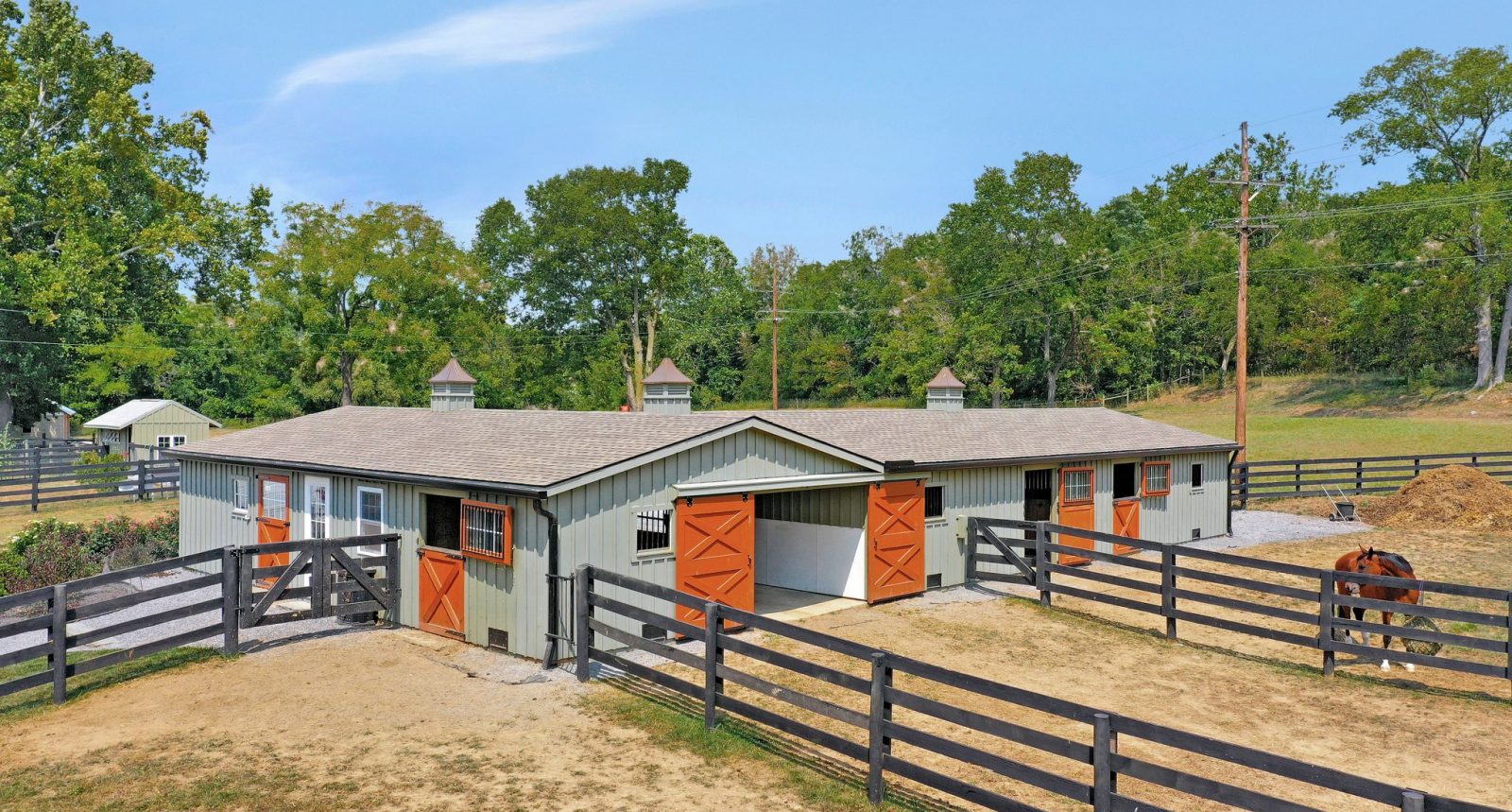

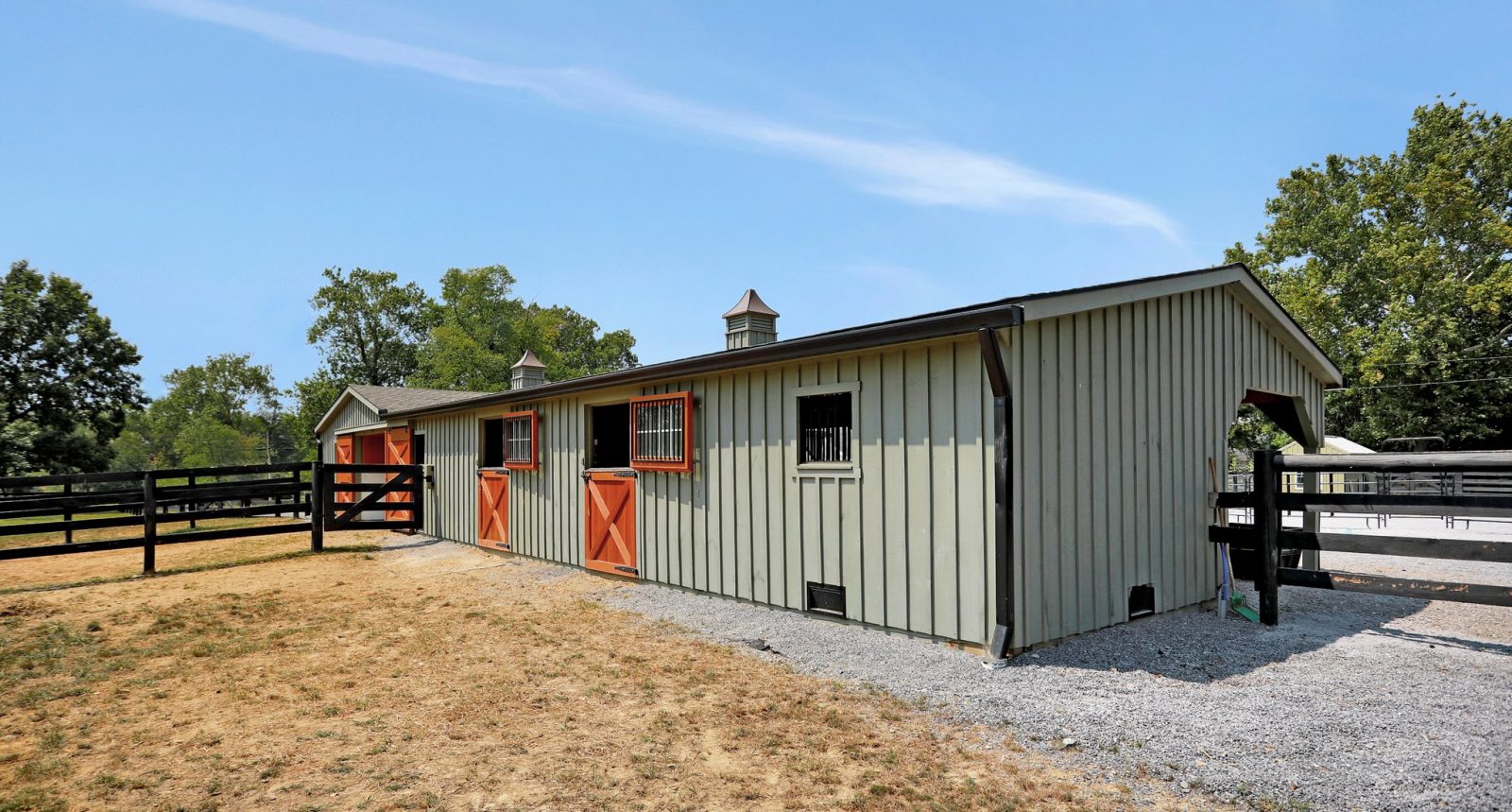

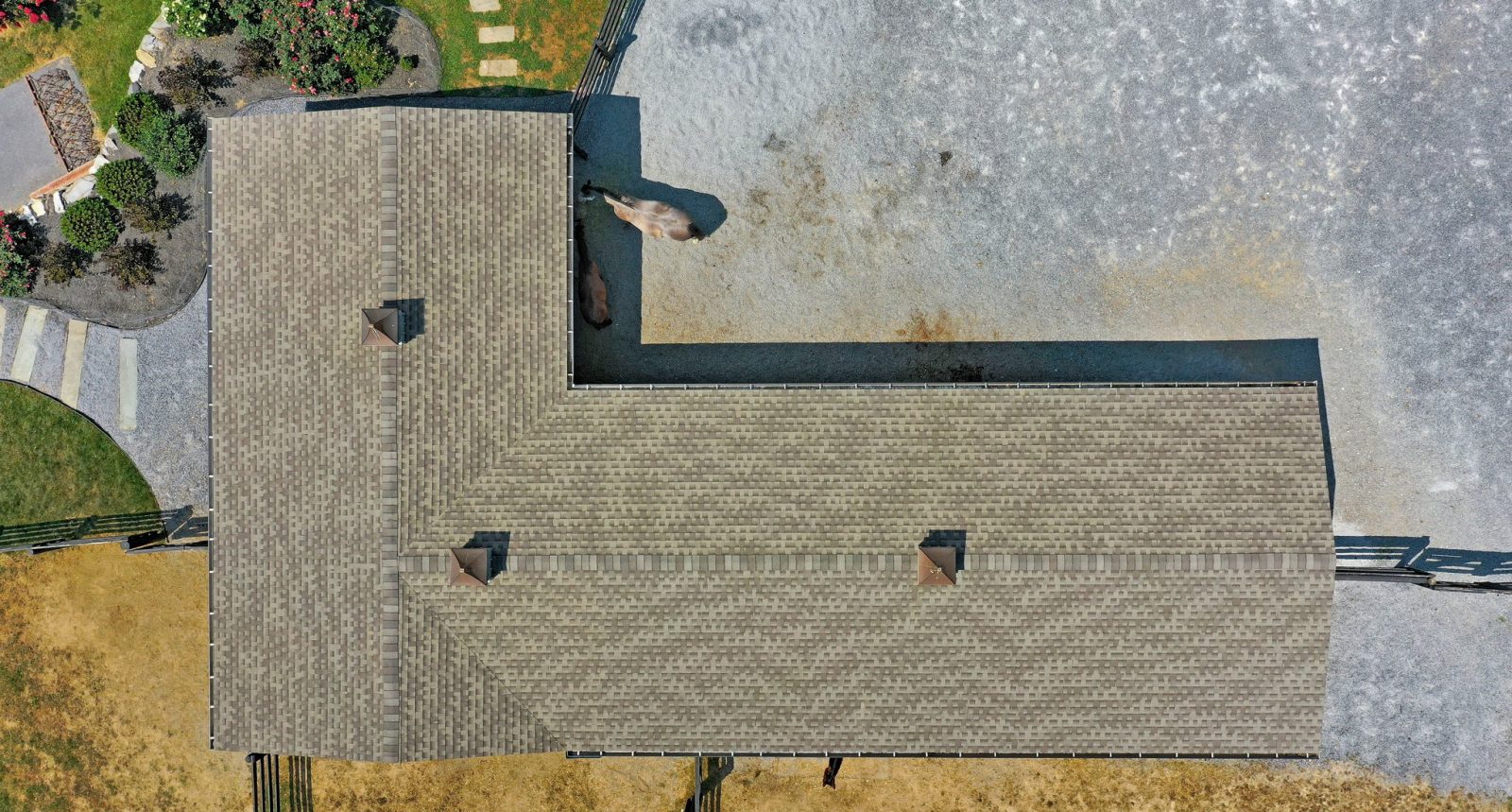

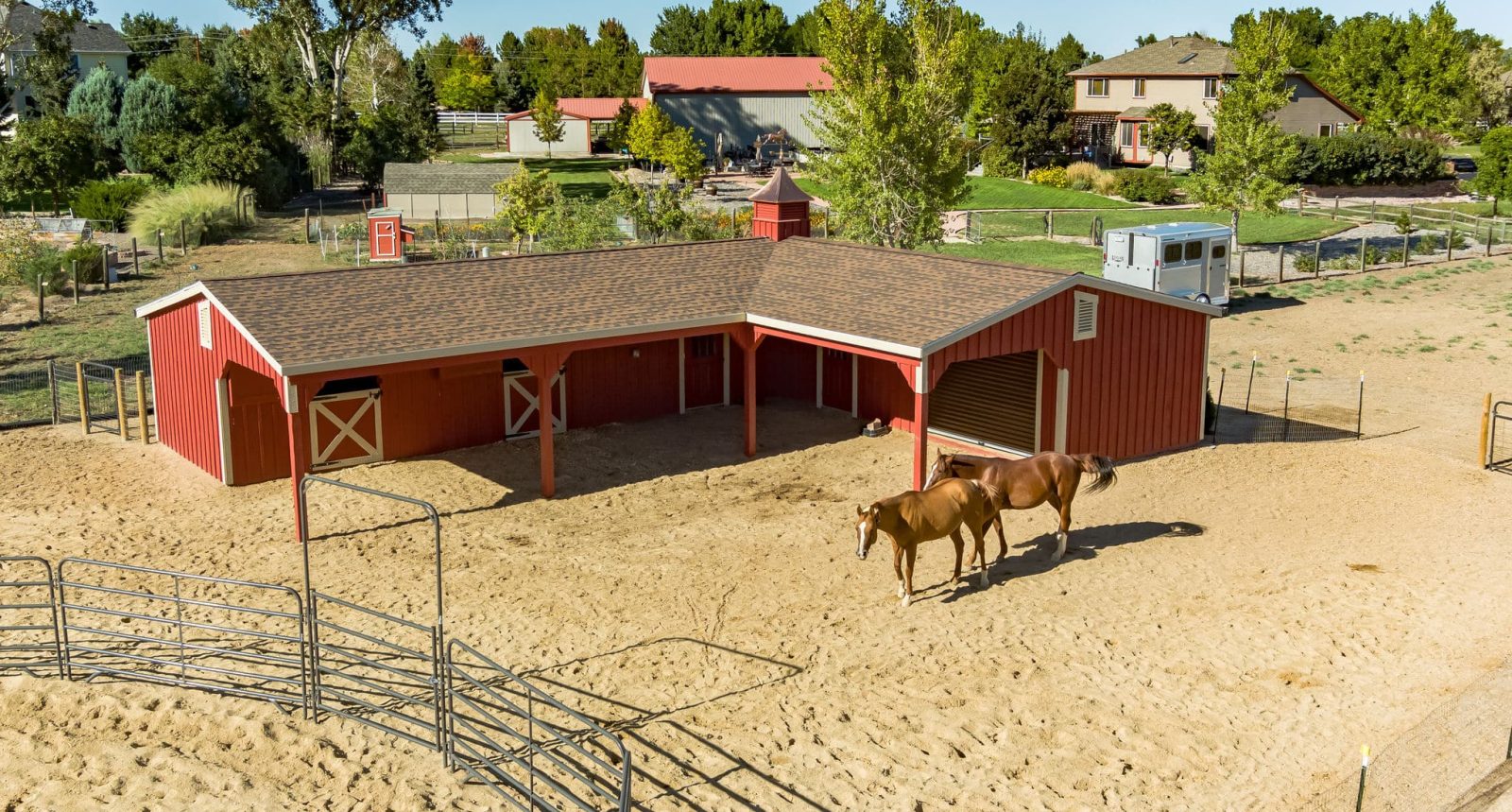

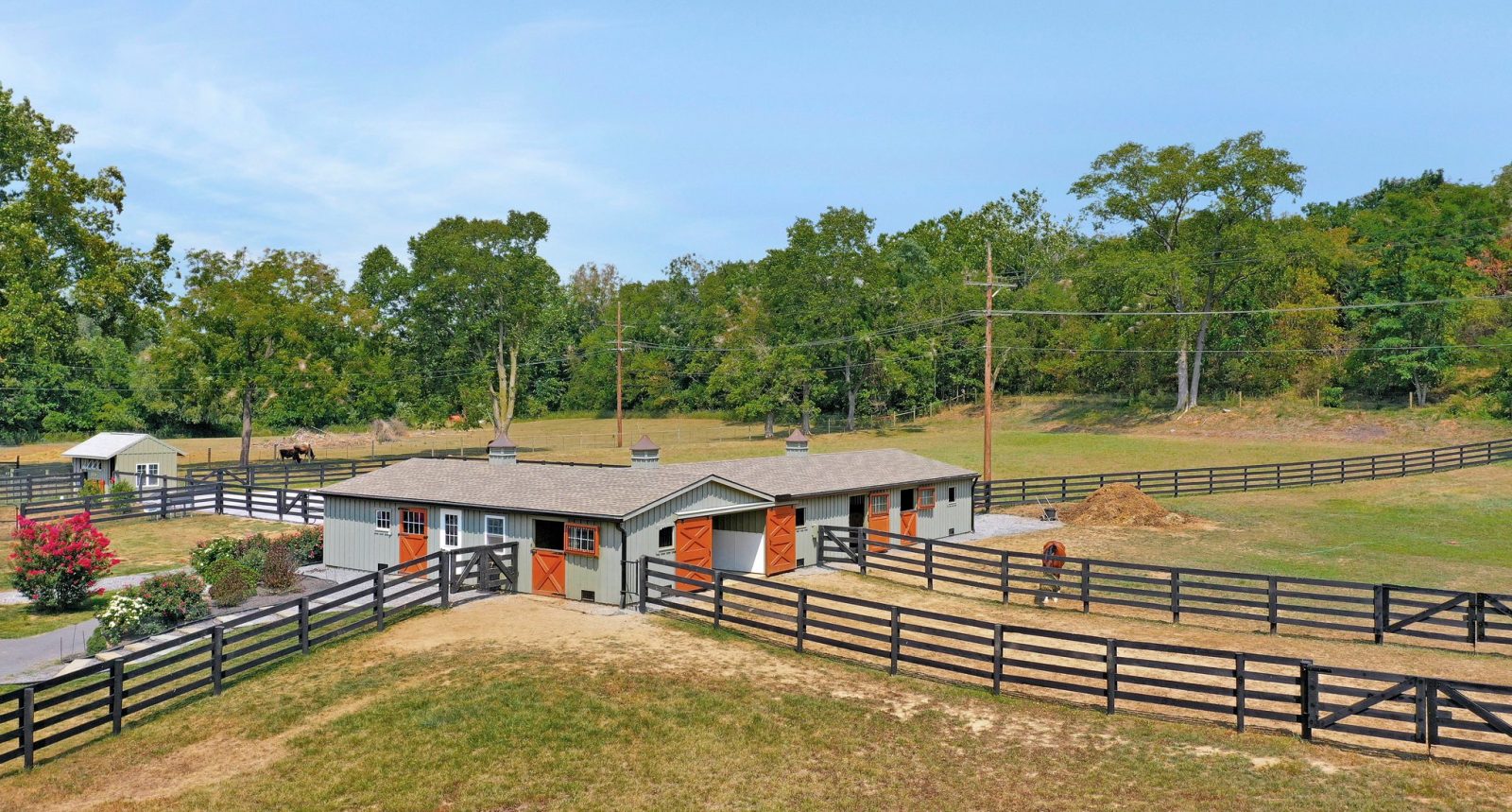

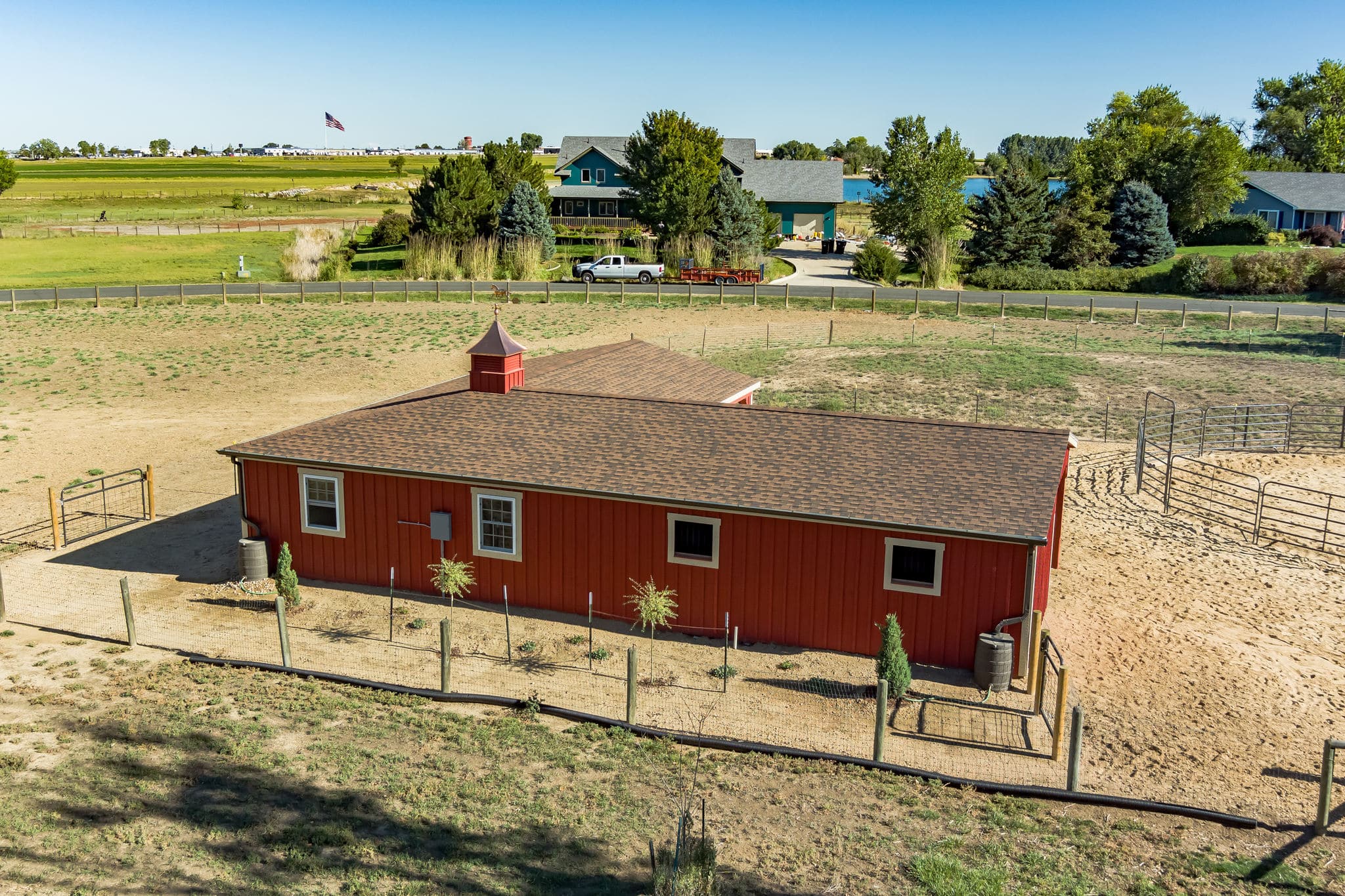

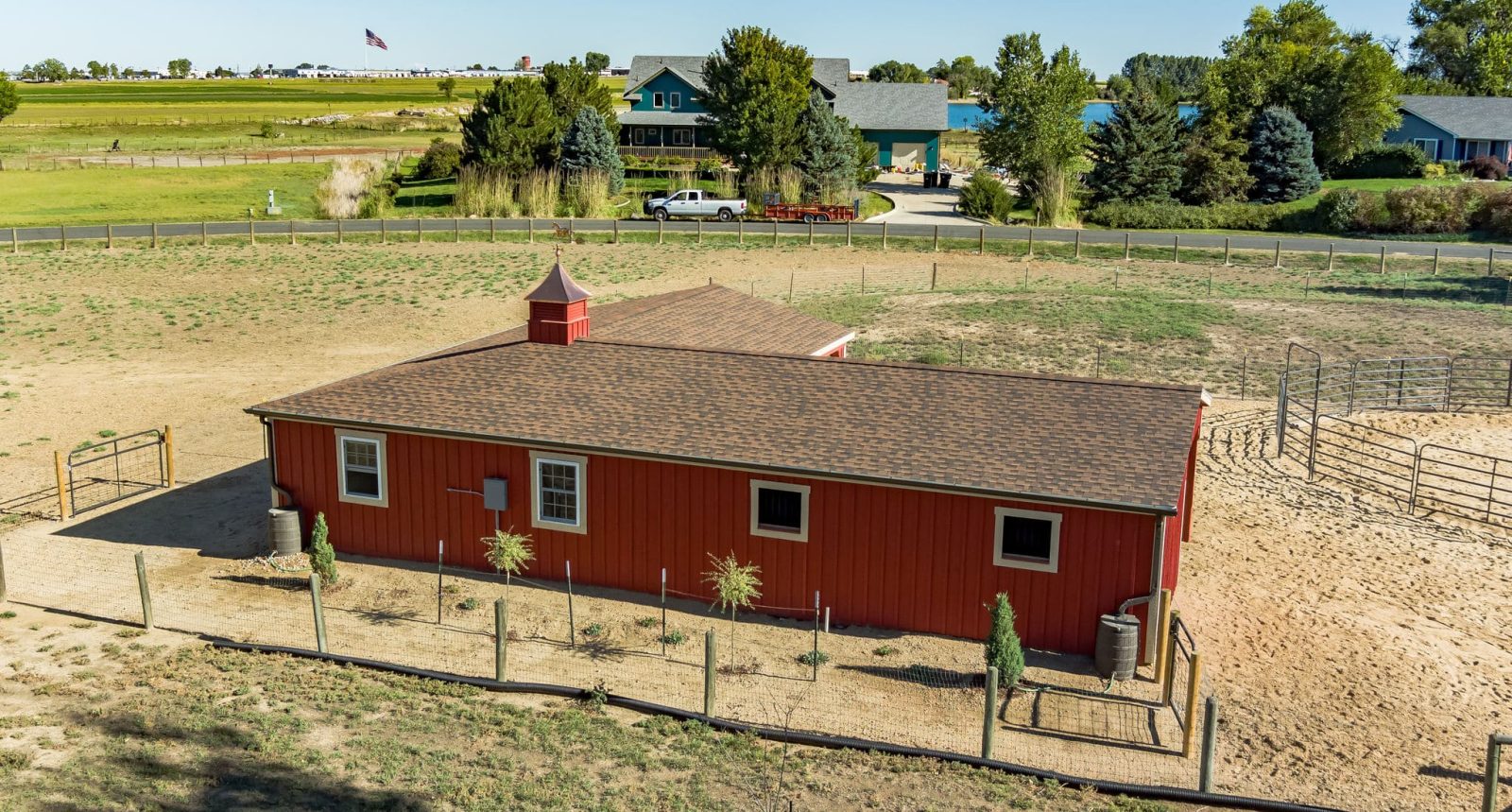

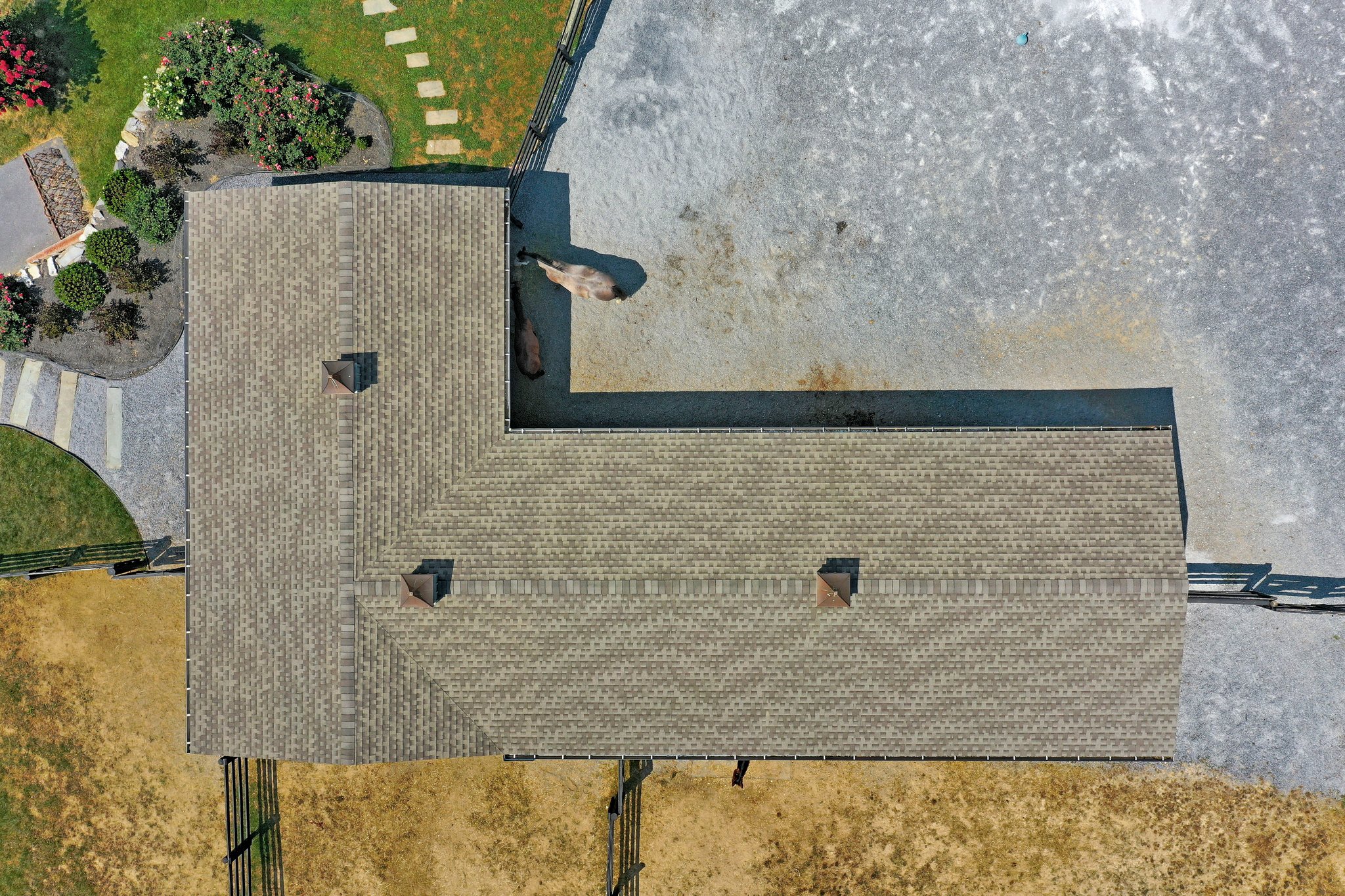

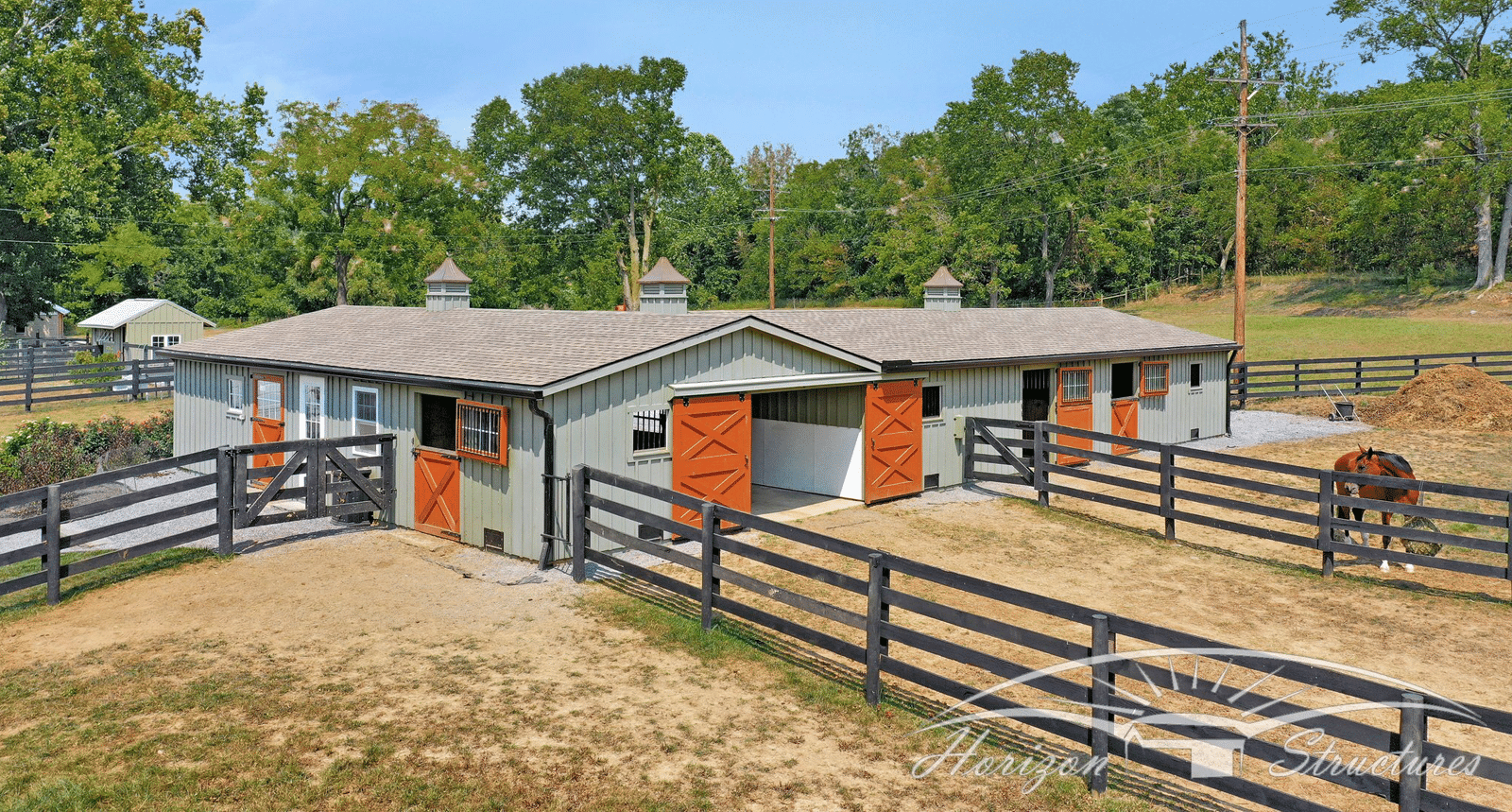

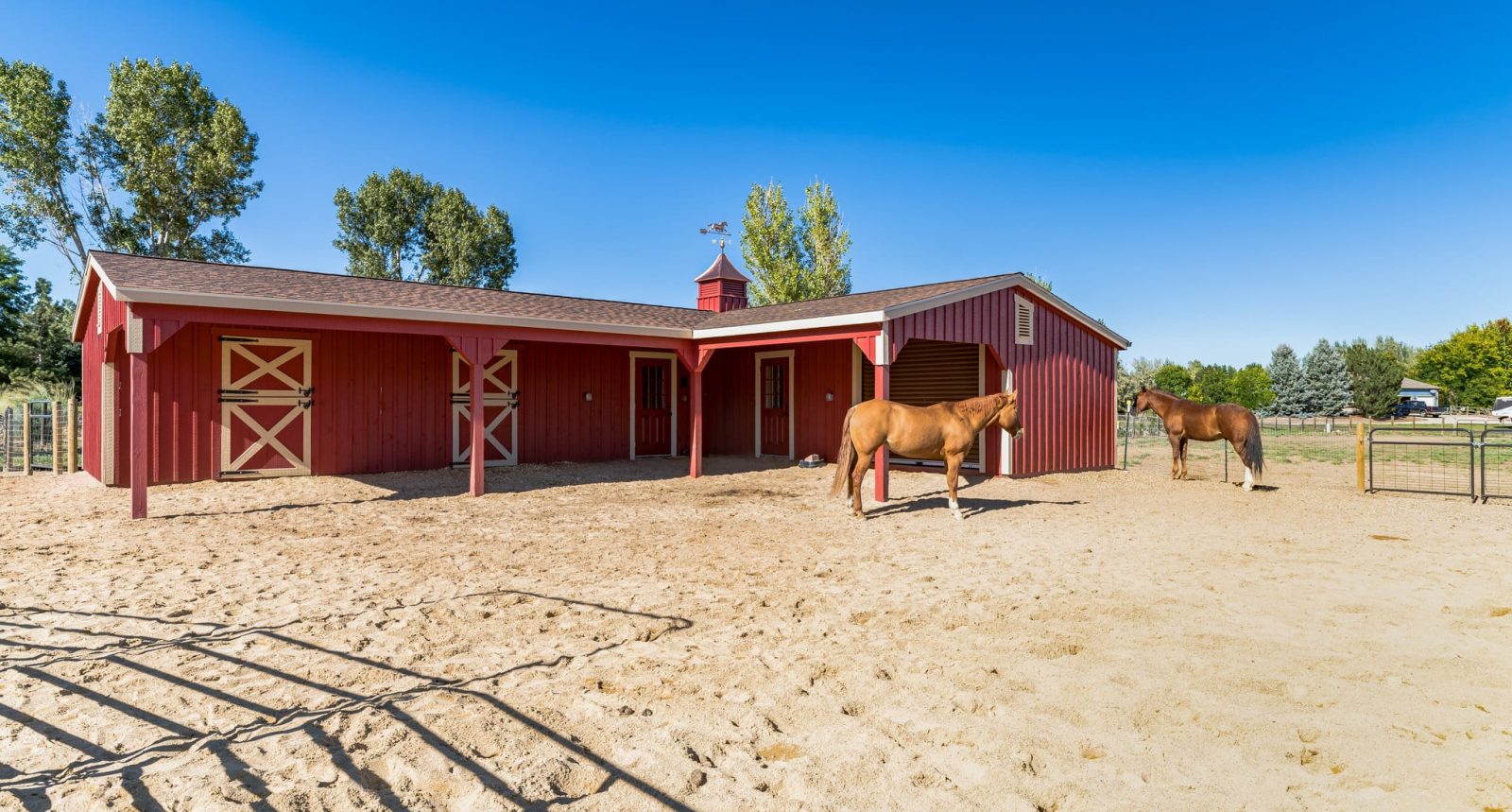

L-Shaped Horse Barn
L-Shaped Horse Barn, Over 1,500 Square Feet!!

L-Shaped Barn Floor Plan
It started with a Floor Plan and a Footer Diagram - Provided by Horizon Structures

Horizon Structures L-Shape Barns are much more than decorative additions to your property! Not only does this type of construction provide a more attractive, visually appealing barn, it is also weather-proof and, unlike other woods, resists warping and cracking.

The time we are on you site is usually just one day, two at the most!! We prefabricate your stall parts here, just as we would a shed row, and deliver them fully assembled. After we position the barns on your prepared pad, we would add the overhang of your choosing. In doing this we can control the quality of your barn and maximize the effectiveness of our employees.

Regardless of how many horses you have, we know your passion and concern for their care and safety is your top priority. All our Amish-made horse L-shape barns are constructed of quality, time-tested materials that stand up to the effects of Nature and the abuse a horse can dish out.

To make sure every detail is taken care of, and nothing is overlooked.

Customize your Horse Barn with our Color Selector Tool



  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barn
  • L-Shaped Horse Barns
  • L-Shaped Horse Barn
  • L-Shaped Barns
  • L-Shaped Barns
  • L-Shaped Barns

Chris G. - L-Shaped Barn

VIEW LAYOUT



Take a Look Inside a Stall

L-Shaped Horse BarnL-Shaped Horse Barn

Pine Board & Batten Horse Barn     Click here for Options List

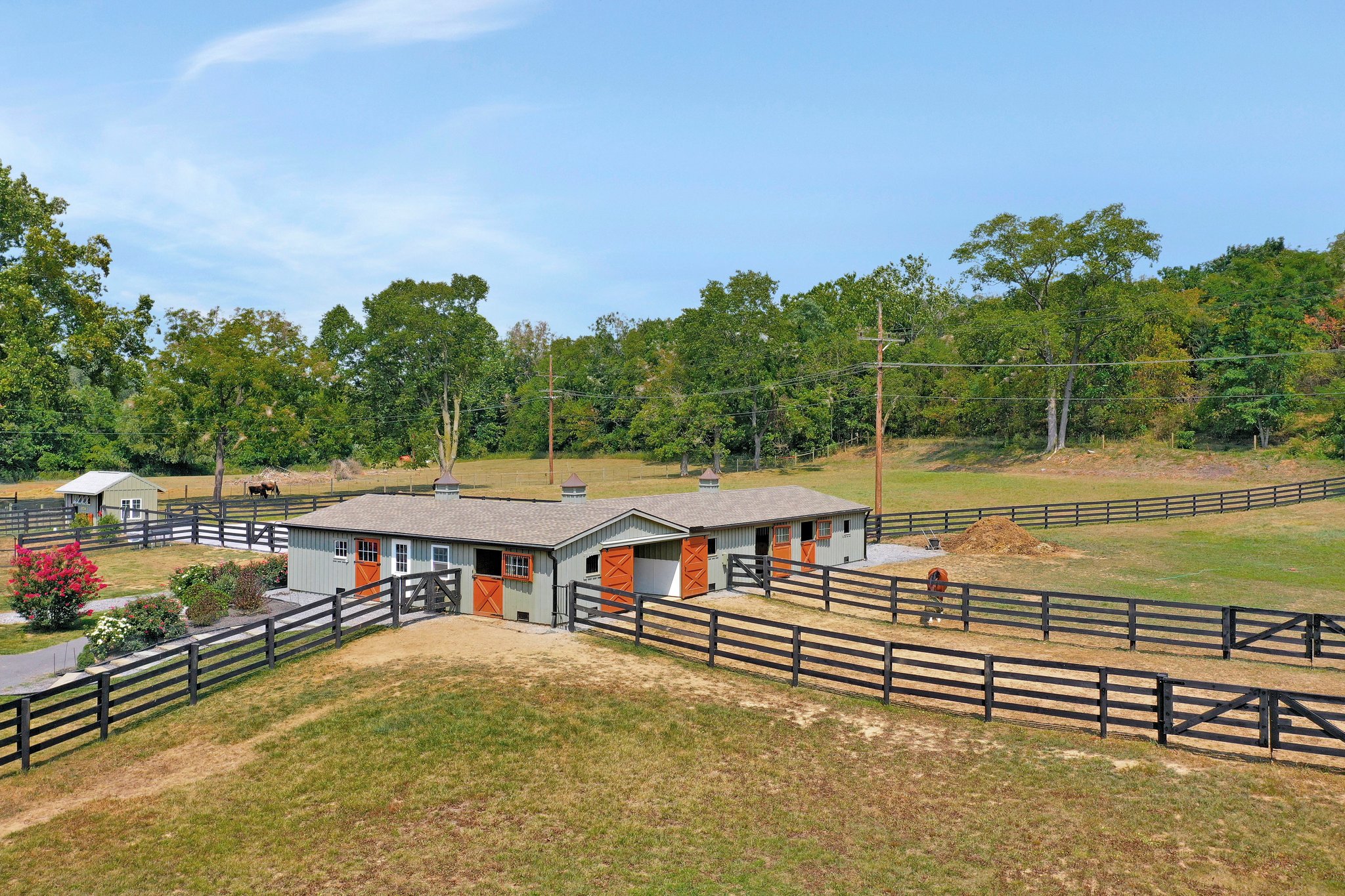

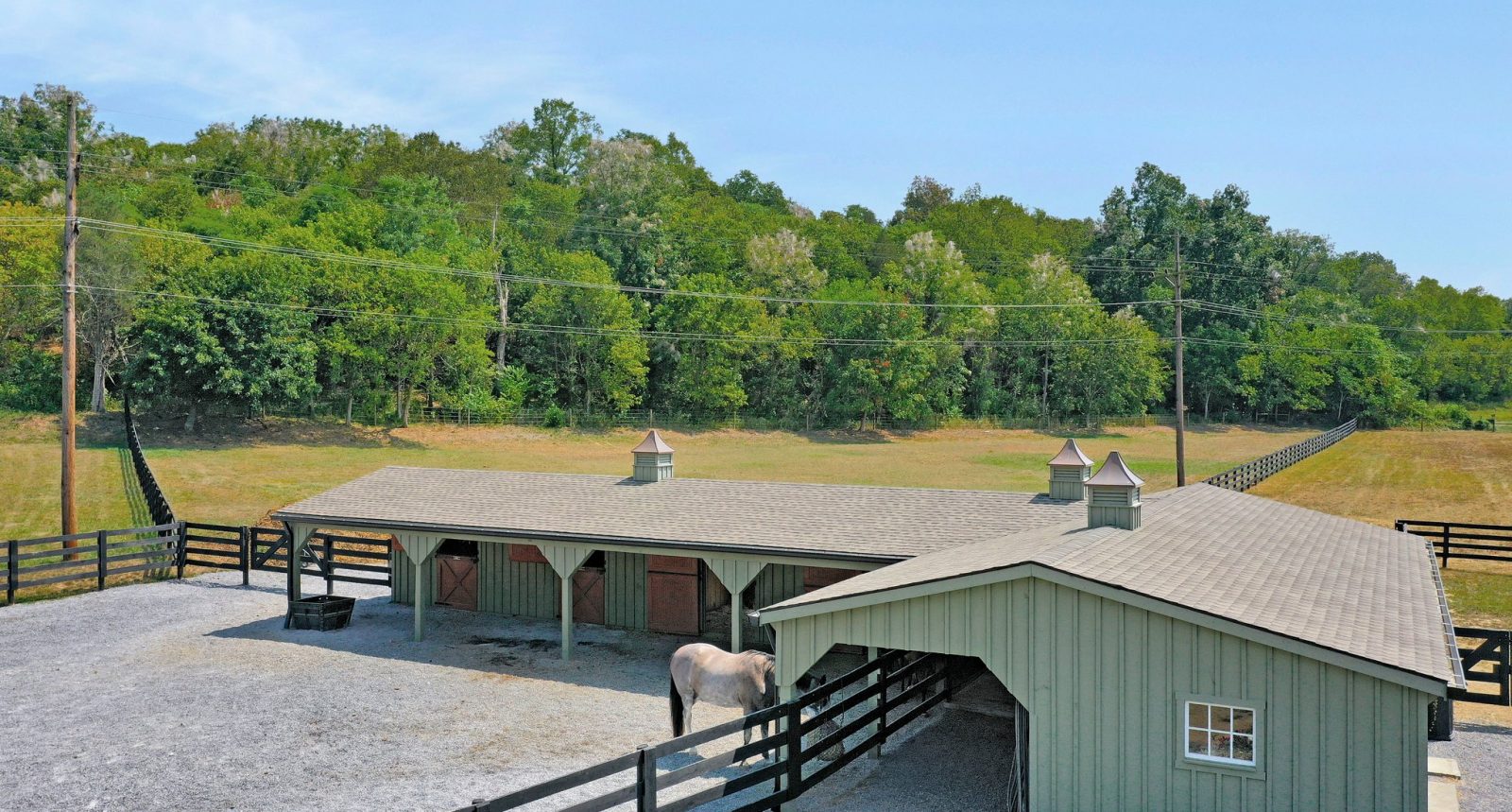

Kriss S.& Chris L. - Leesburg, VA

L-Shaped Horse Barn
L-Shaped Horse Barn
L-Shaped Horse Barns


Horse Barn Floor PlanHorse Barn Footer Diagram

  Click Here for details about Quick and Easy financing for barns

Here are just a few good reasons to buy an L-Shaped wooden horse barn...

  • 10x52 and 10x58 L-Shaped Horse BarnThe natural insulating properties of wood make it the obvious choice for construction of your horse barn. A horse barn made of wood will stay cooler in the summer and warmer in the winter ensuring your horse's maximum comfort regardless of the season.
  • A wood horse barn is sturdier and safer then metal. Serious injury can result from a well-placed kick puncturing a metal sided barn. A wood horse barn will not dent or puncture.
  • The absorption properties of wood - both sound and moisture - make a wooden horse barn a drier, quieter, more comfortable place for your horse to reside. Condensation is not an issue and outside sounds, whether from the weather or other sources, are muffled. Unlike a metal building, strong winds will not rattle your wood barn or your horses' nerves.
Inside Tack Room, Tack Room Interior
Inside Tack Room
Horse Barn Stalls, Grill Partition
Stalls include oak kick board,grill (or solid) partition, slider window with bars.
Horse Latch
All Hardware - Powder-Coated Steel


Download "The Perfect Barn" Digital Catalog!

 NOTE: All L-shape barn, run-in and stall dimensions referred to on this site are OUTSIDE dimensions

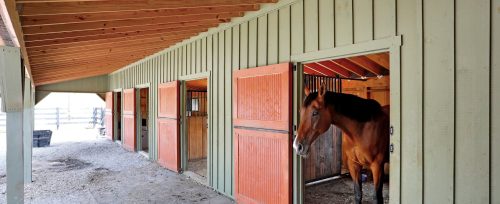

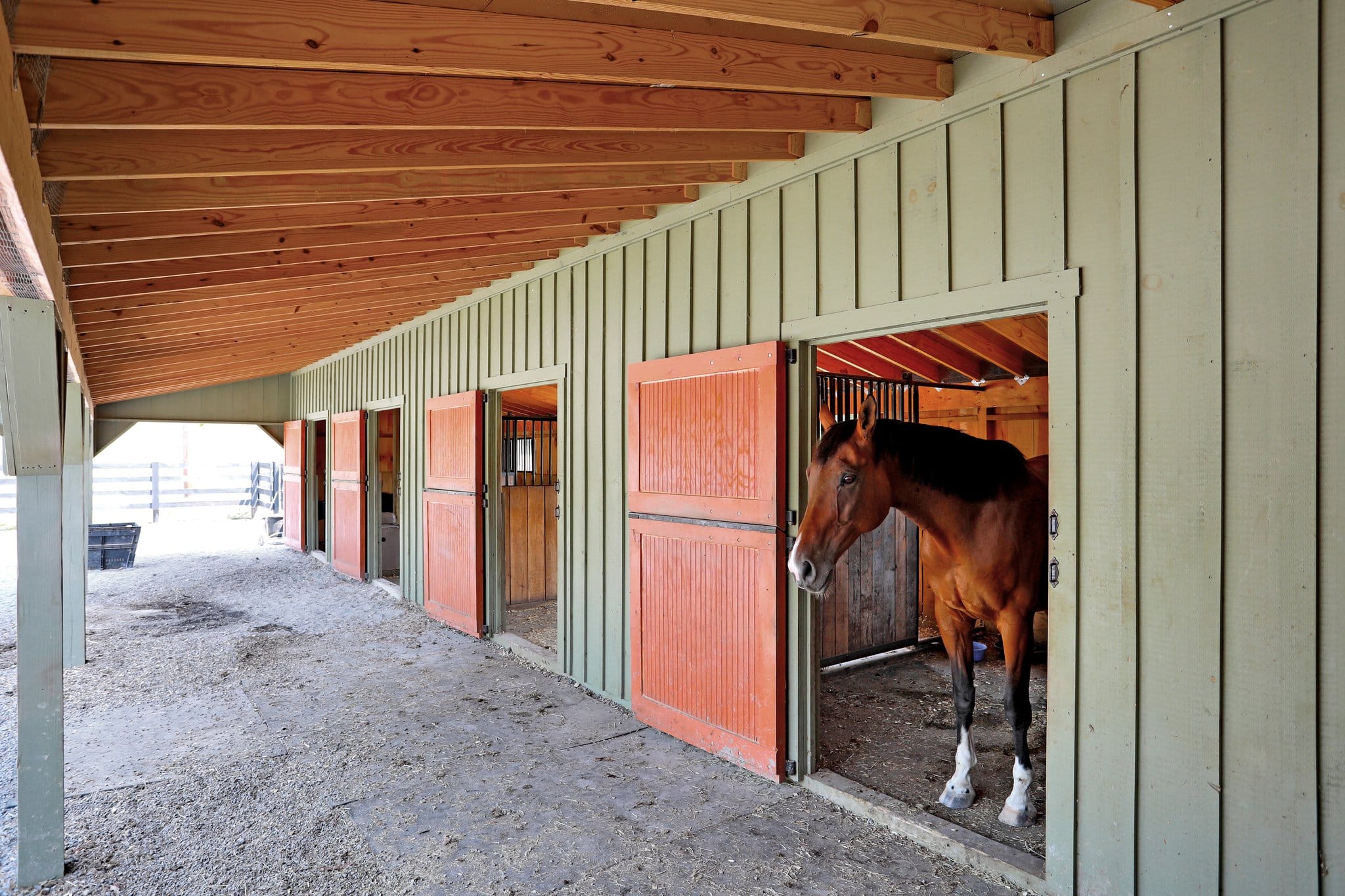

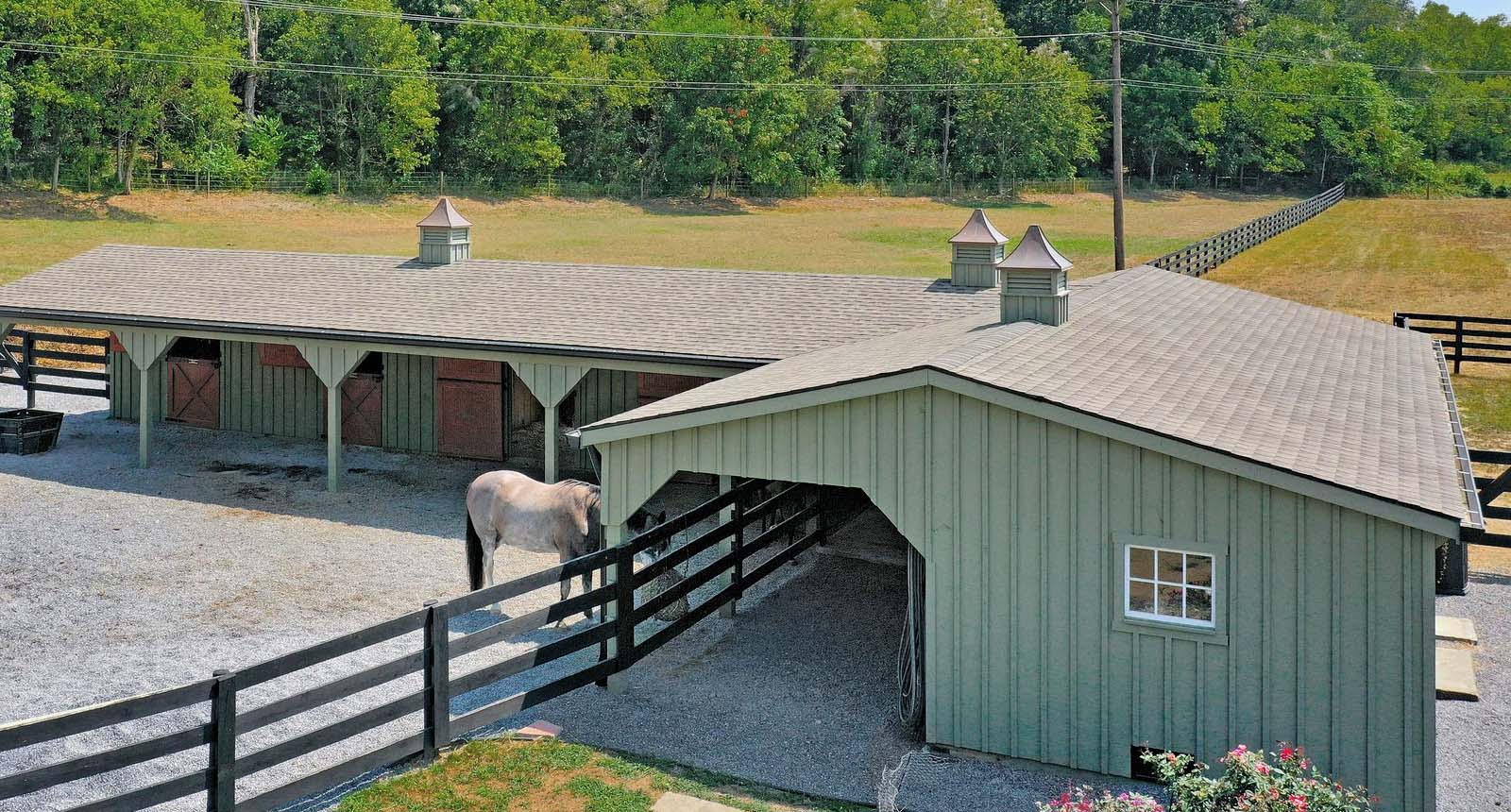

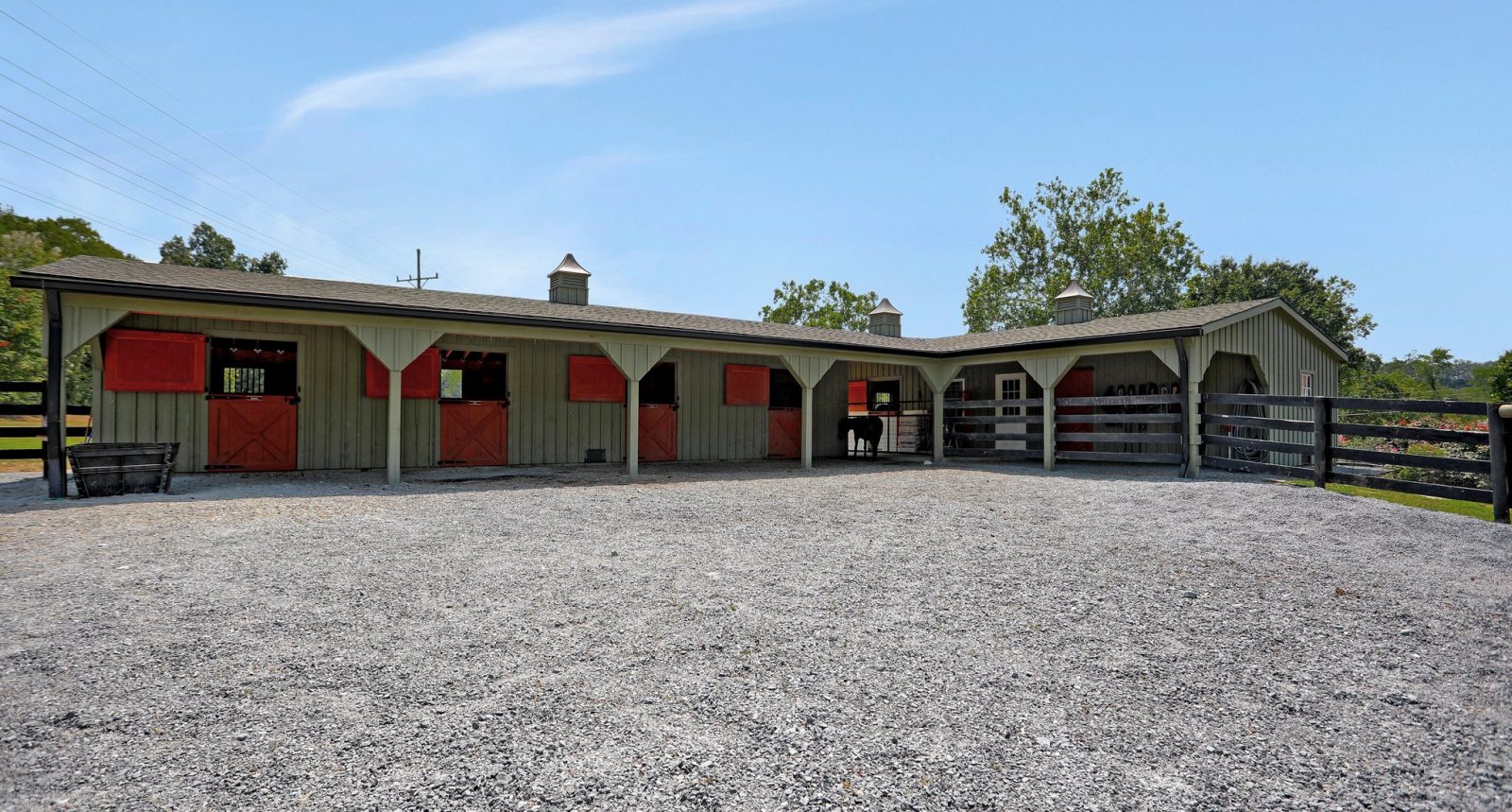

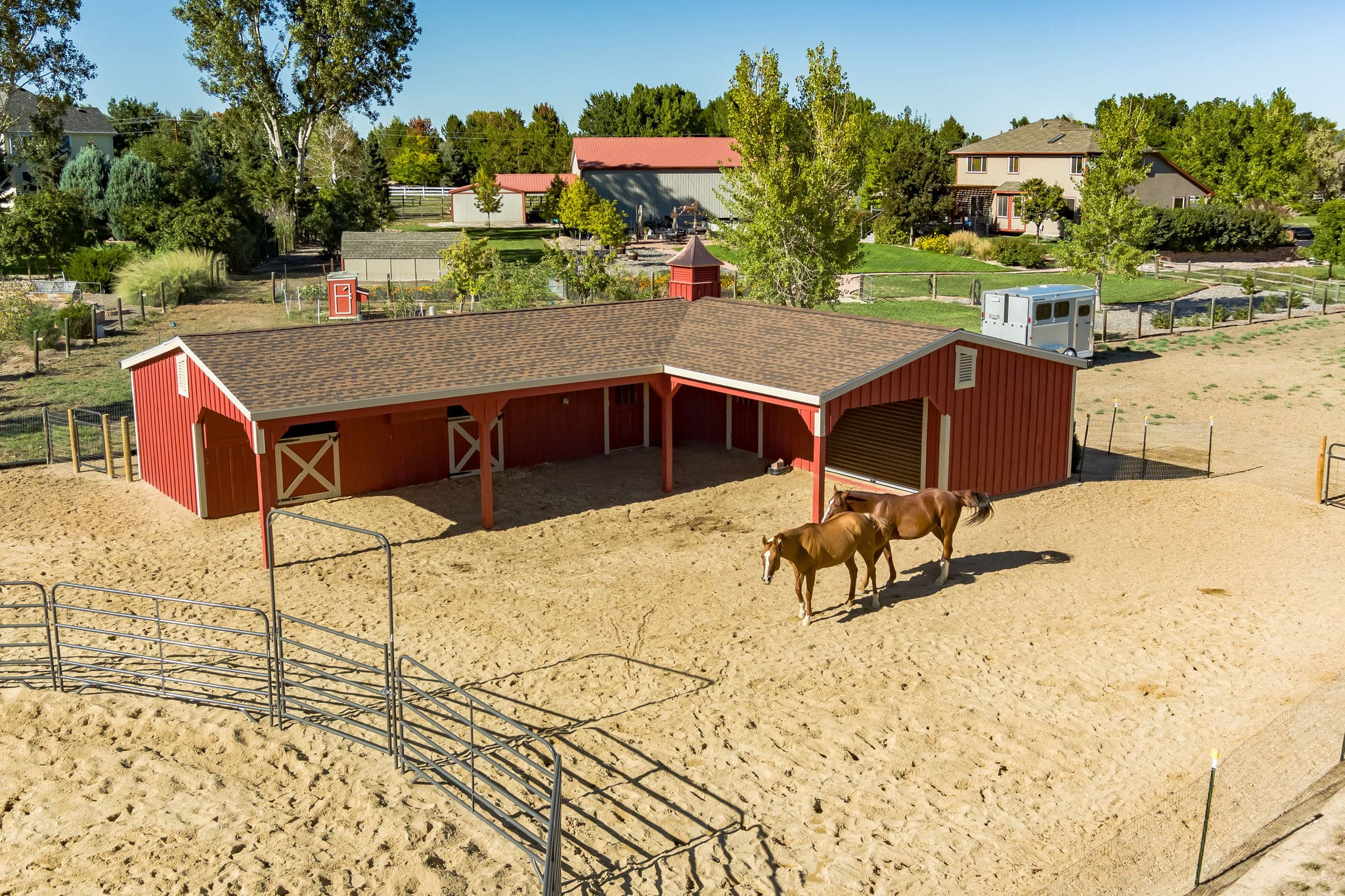

Overhangs Available

2, 12x72 sides, L-Shaped Horse Barn


Additional Info: L-Shape Horse Barn Options | Overhang Info | Site Preparation | Delivery | FAQ


Siding and / or kick board material may vary depending on locally available materials.
Horizon Structures reserve's the right to substitute white pine siding and / or oak kick board with materials best suited for optimal performance within your geographic region.
**Cypress siding on the L-Shaped barn may be substituted for white pine, in Southern and Western regions,
due to its moisture and insect resistant properties.
**Spruce may be substituted for oak kick board due to local availability.
