High Profile Modular Barns

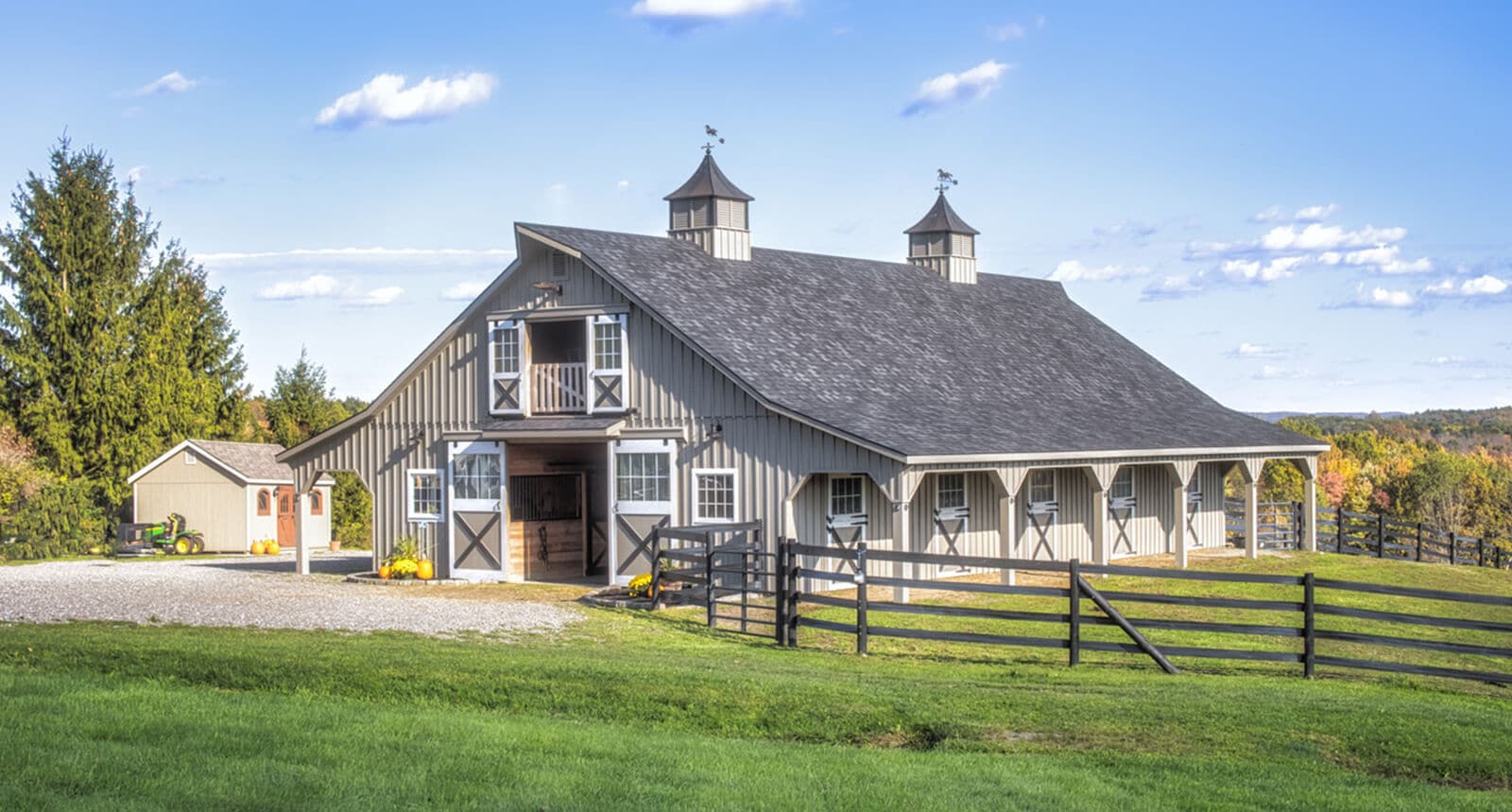

36x60 High Profile Modular Barn with 8 ft. Overhangs

With it's 8/12 pitch roof, our high profile modular barn is perfect for the loft-lovers, of the world. You can also get this barn without a loft, creating total clearance and a great sense of openness all the way up. Finally, if you think you might want or need a loft at a later date, or you want to save some money, our high profile is available with an attic truss system. That will allow for you to add a loft floor to your prefab barn, yourself. How's that for flexibility?

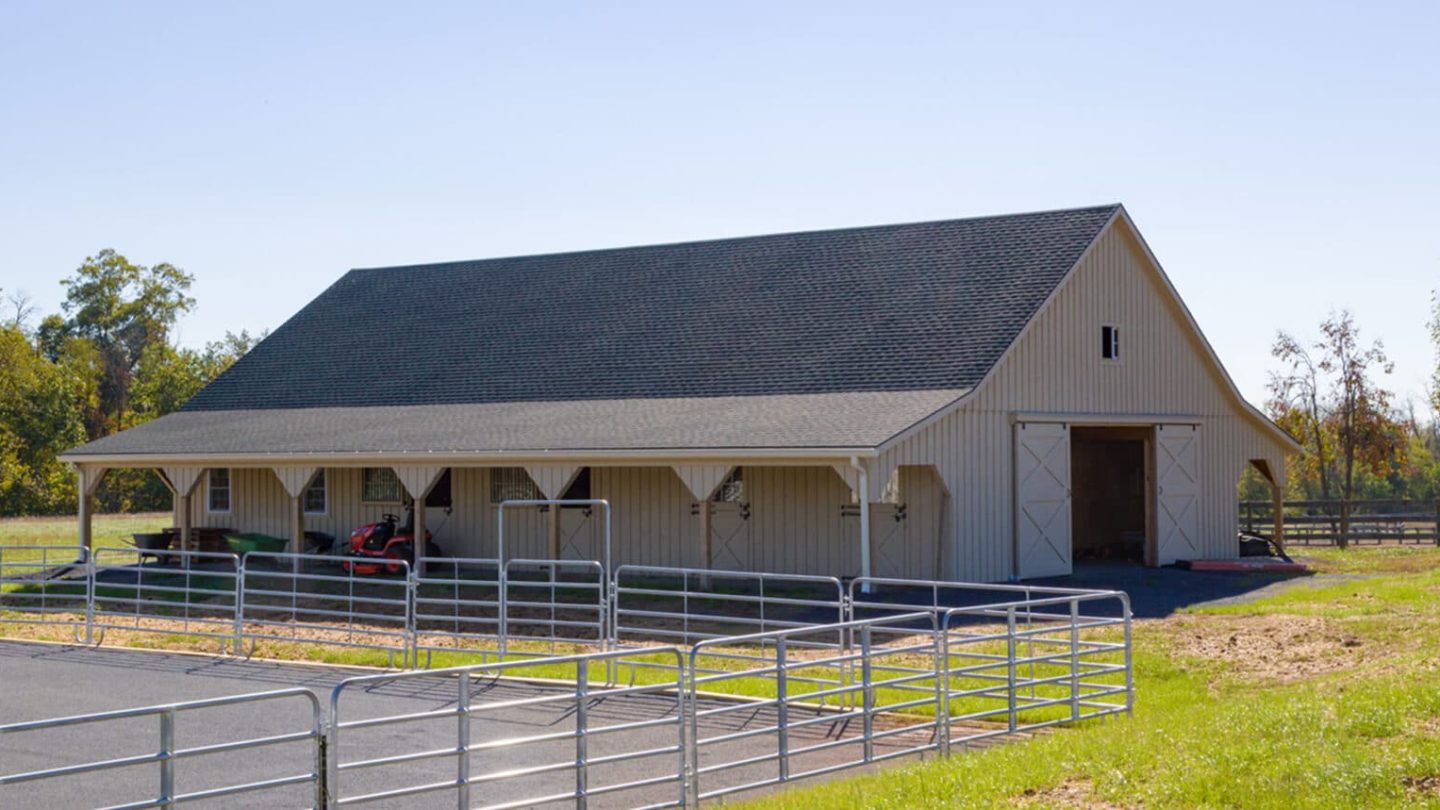

Our high profile modular barn plans also easily accommodate for overhangs, being a barn favorite for many of our customers!

Body Tabs

  • Steel Re-enforced Corners with Built-In Tow Hooks

SIDING CHOICE: 7/16" LP SmartSide (with Silver Tech) Wood Exterior Siding (painted) OR *Pine or Cypress Board & Batten Exterior (unfinished)

  • 4' Oak Kickboard
  • Quaker Style Roof
  • All Hardware: Horse Head Door Latches, Hinges, etc.
  • Shutters for all windows
  • 2x8 Pine Tongue and Groove Paneling in Aisle
  • Gable Vents
  • Split Sliding Aisle Doors Both Ends

Stalls Include:

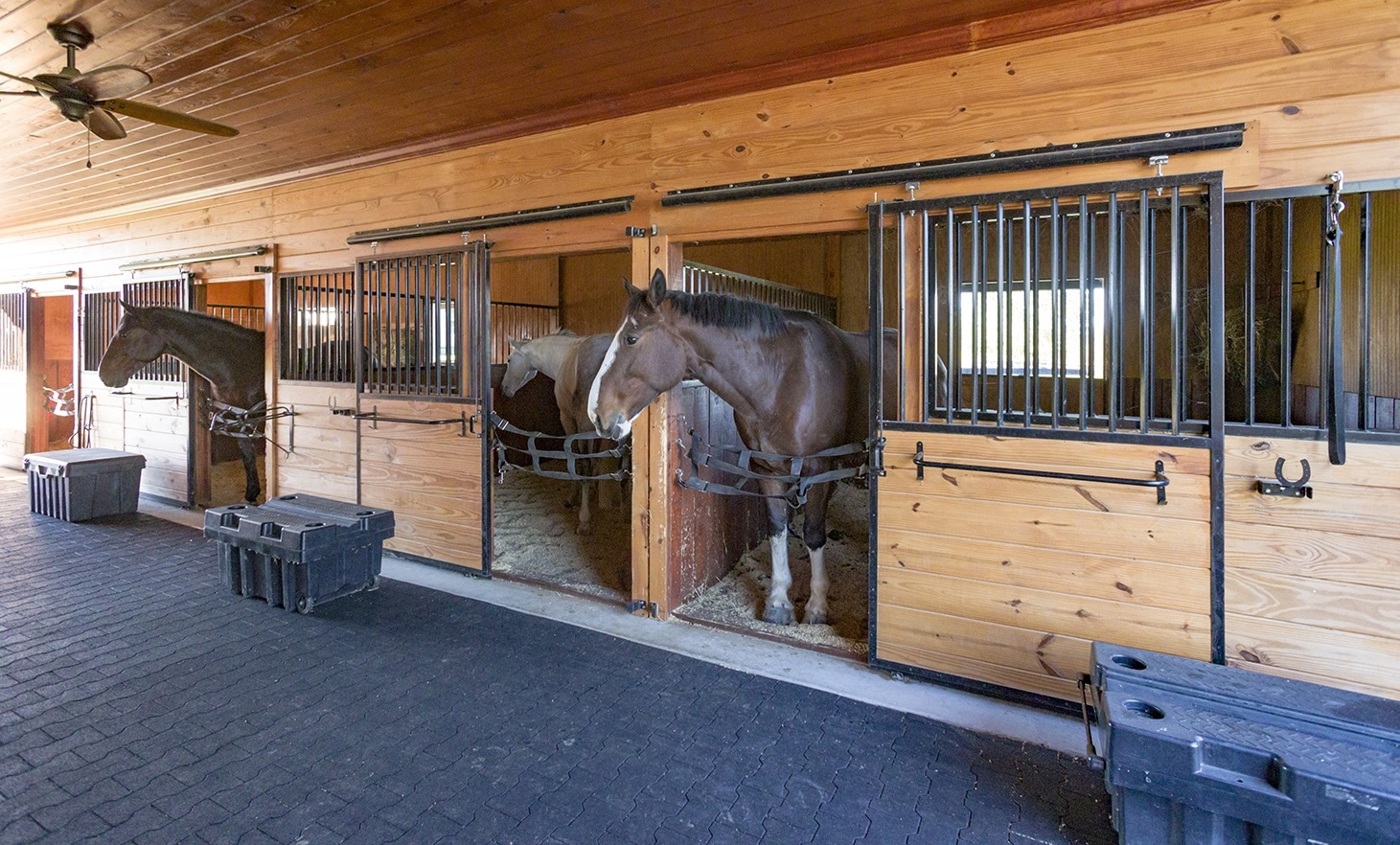

  • Grill Stall Front with Sliding Stall Door
  • Window with Powder-Coated Steel Bars
  • Solid or Powder-Coated Steel Grill Partition
  • 4' High Oak Kickboard
  • Dutch Door with Metal Chew Guard

Tack/Feed Room Includes:

  • Lockable Service Door
  • Window
  • Wood Floor
  • Loft Includes:
  • Loft Over Aisle
  • Full Wooden Staircase with Hand Rail
  • *Gable Window
  • Gable Door

*Monitor also includes 1 window per stall

Compare our prefab horse stalls with a stick built barn and you won't even be able to tell the difference. And our High Profile horse barn plans are the nicest yet.
With the second floor you have plenty of hay storage, or think about adding living quarters, instead!

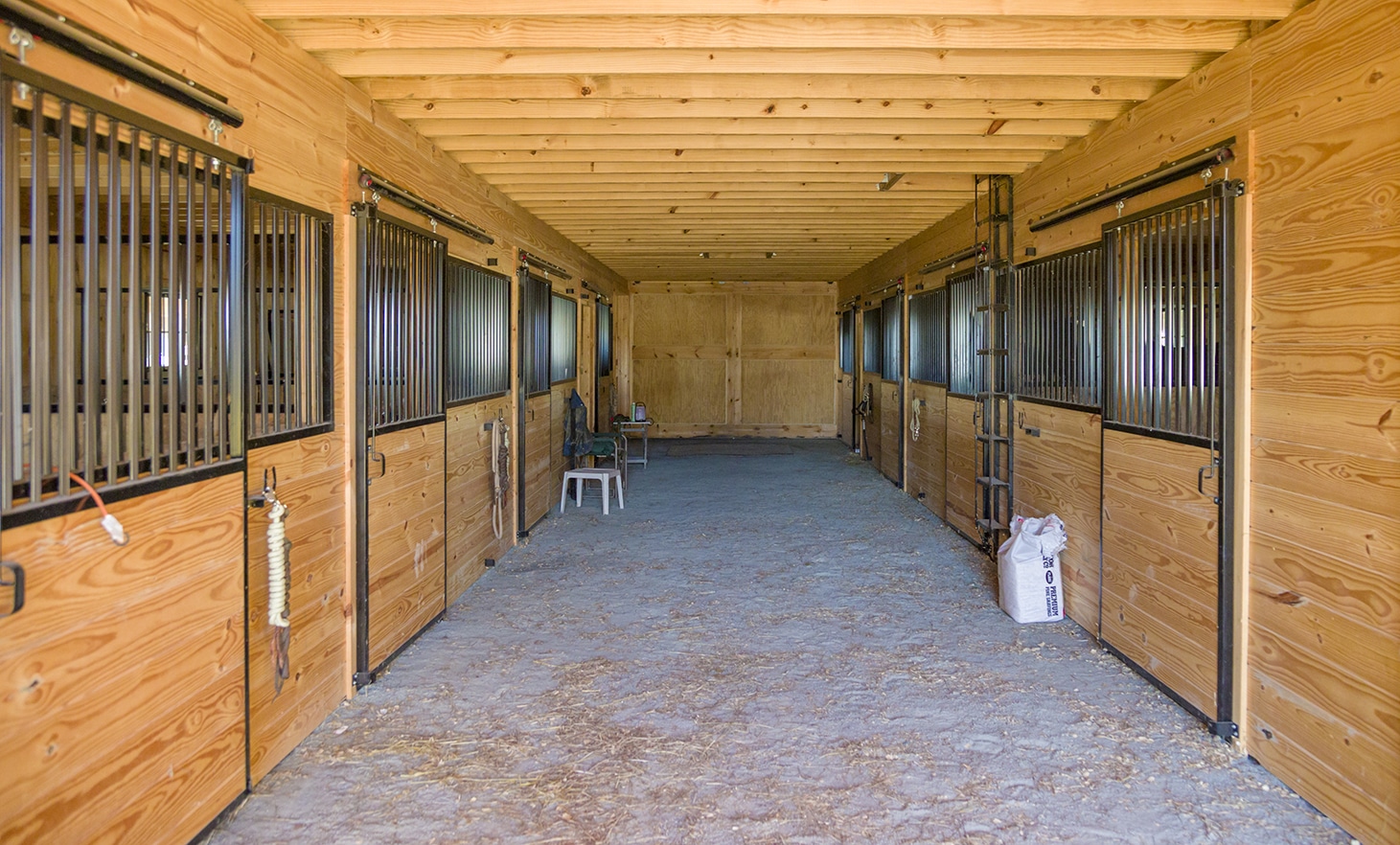

  • 10' or 12' Center Aisle
  • Leave Space Open Above the Stalls
  • OR Add a Full Loft - Includes: 5/8" Plywood Floor, Full Wooden Staircase, Gable Door and Gable Window.
  • Add a Wash Stall
  • Same List of Standard Features as Our Other Modular Barn Styles

Here's How It's Done...

Step 1:

First, the pre-built sections are set up parallel to form he center aisle. Next, the roof trusses are added to this horse barn.

Horse Barn

Step 2:

Our men get ready to finish the roof and build the overhangs to this horse barn.

Horse Barns

Step 3:

A metal Insulated roof (upgrade) is Installed. Horse barn is stained. doors are hung.

Horse Barn

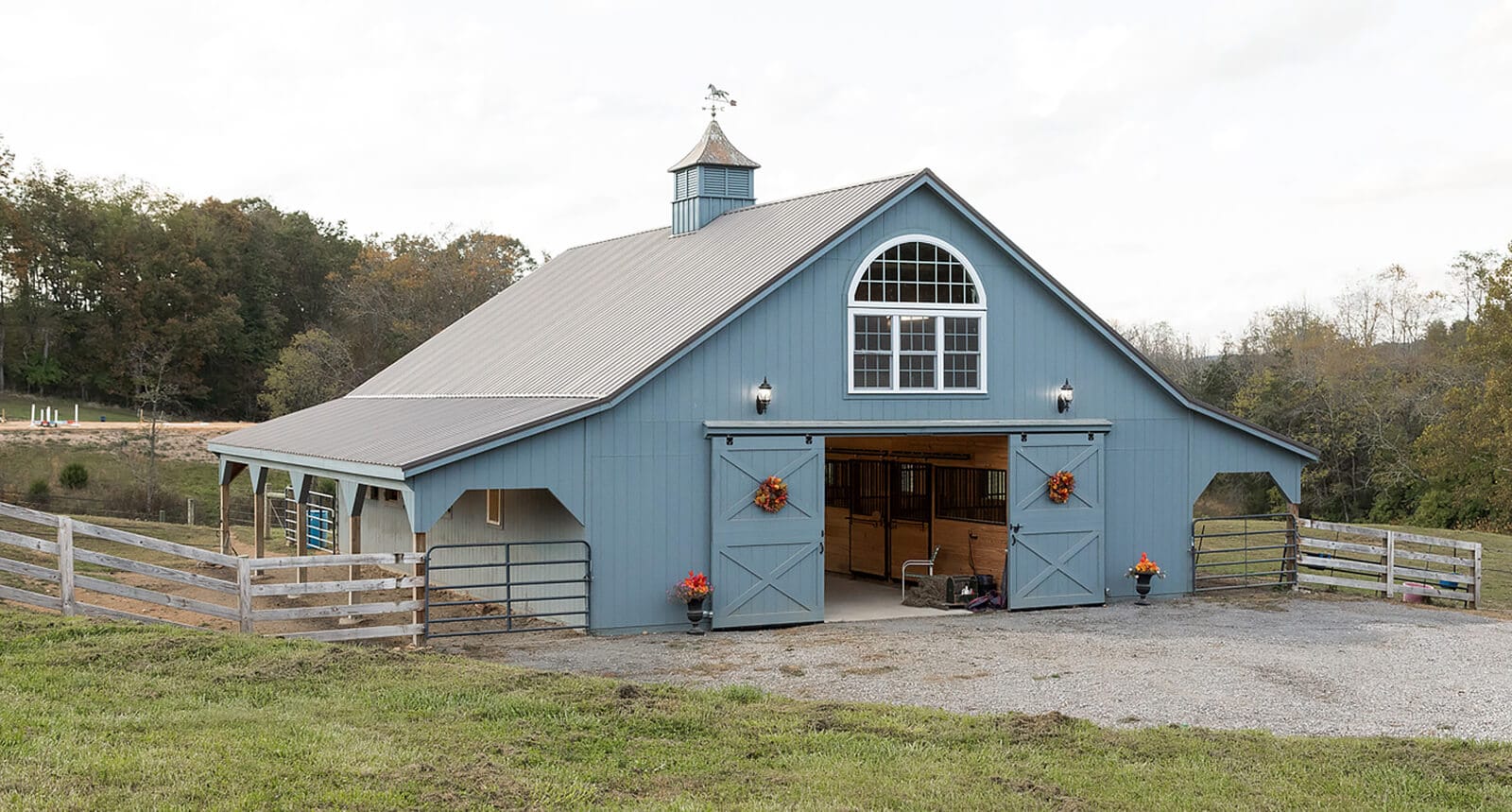

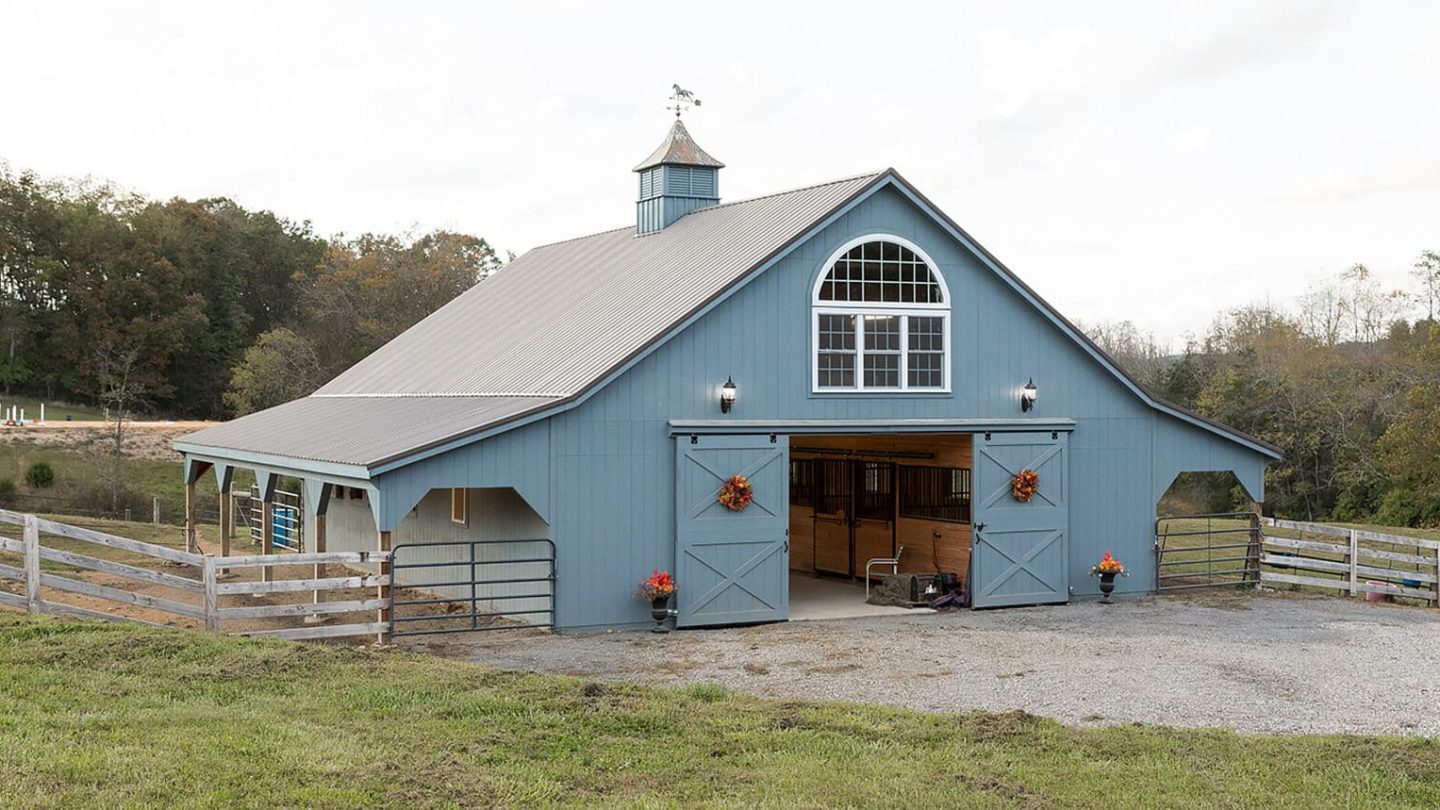

36 x 48 Horse Barn with 2 8' Overhangs

Time on site - only about 3 days!

Horse Barns

View Layout of This Barn

Sample High Profile Horse Barn Layouts

Board&Batten High Profile

36 x 28 Horse Barn with 10' Overhang

  • 3 - 12 x 14 Stalls
  • 12 x 14 Tack Room
  • Full Loft
  • 10' Overhang - Installed
  • Upgrade Stall Windows to Dutch Doors
  • Add Window with Grill to 2 Dutch Doors
  • 32" Copper Roofed Cupola with Copper Horse Weather vane
  • Double Plywood Floor in Tack Room
  • Metal Insulated Roof
  • Pine Tongue & Grove in Center Aisle
  • Double Service Door
  • Upgrade Service Door, end of aisle, to Second Sliding Door

See the layout of this barn

Horizon Structures 36 x 60 High Profile Modular Horse Barn

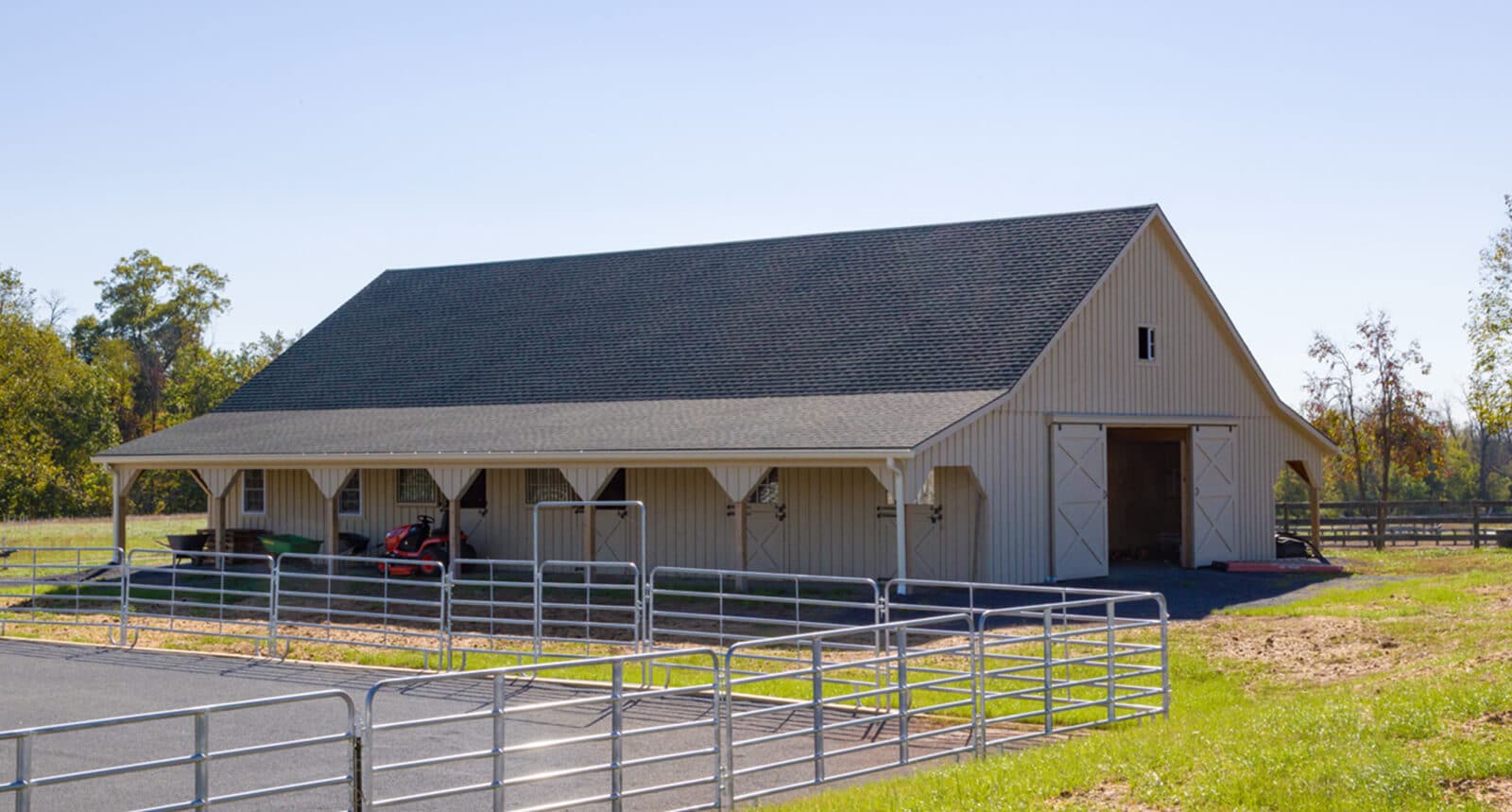

36 x 60 Horse Barn

  • 9 - 12 x 12 Stalls
  • 12 x 12 Feed Room
  • Replace All Stall Windows with Dutch Doors with Windows with Grills
  • Pine Tongue & Groove Paneling in Stalls, Tack Room & Center Aisle
  • No Loft
  • Add Service Door to Gable End

More Pictures... Adding the Roof   Exterior View

  Click Here for details about Quick and Easy financing for barns


Online Interactive Horse Barn Referral Map

Is a new horse barn in your future?


Big projects require careful research.


Start your planning on our Barn Finder page.


"I gotta tell you, the barn is even nicer than I thought it would be. I'm the talk of the town. Some of my neighbors are really jealous. They paid a lot more for their barns that aren't as nice and are much smaller. You guys were a real pleasure to deal with and I won't hesitate recommending you or using you again when the time comes."

Justin S, Clover, SC - 10/25/2007


Horizon Structures 36x36 hi-profile barn with overhang

32 x 36 Horse Barn with 10' Overhang and Solar Panel

  • 2 - 12 x 12 Stalls
  • 12 x 12 Wash Stall
  • 12 x 12 Tack Room - Insulated & Finished
  • 12 x 12 Hay Storage Room / Stall
  • 12 x 12 Equipment Room
  • 10' Overhang - Installed
  • Metal Roof
  • Replace Stall Windows with Dutch Doors
  • Add Windows to Sliding Aisle Doors

See layout of this barn

Horse Barn - 36' x 54' High Profile

Solar Electrical System by Smucker's Energy

"Put all your horse power under one roof”

Economy has you looking to cut costs, but you are still in need of a Horse Barn and a Garage?

Check out what this customer did:

During the process we like to get you a horse barn floor plan, and elevations to make sure we are all on the same page.
There is no charge for this, it is all a part of the Horizon Structures experience!


30x20 High Profile Modular Barn

30x20 High Profile Modular Barn
View floor plan

32x30 High Profile Modular Garage with 8' Overhang

32x30 High Profile Modular Garage with 8' Overhang
View floor plan


36x40 High Profile Modular Barn with (2) 8' Overhangs

36x40 High Profile Modular Barn with (2) 8' Overhangs
View floor plan

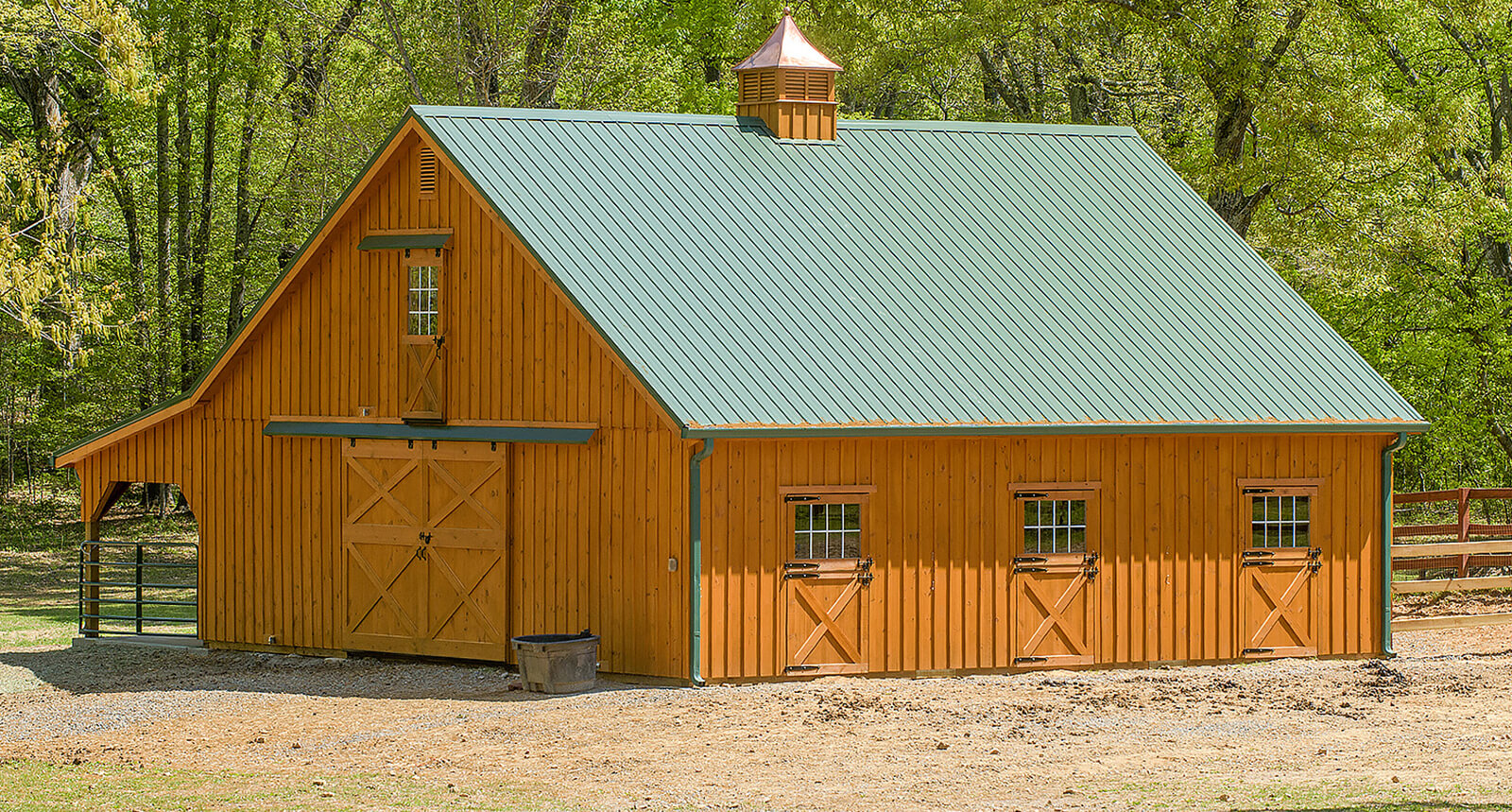

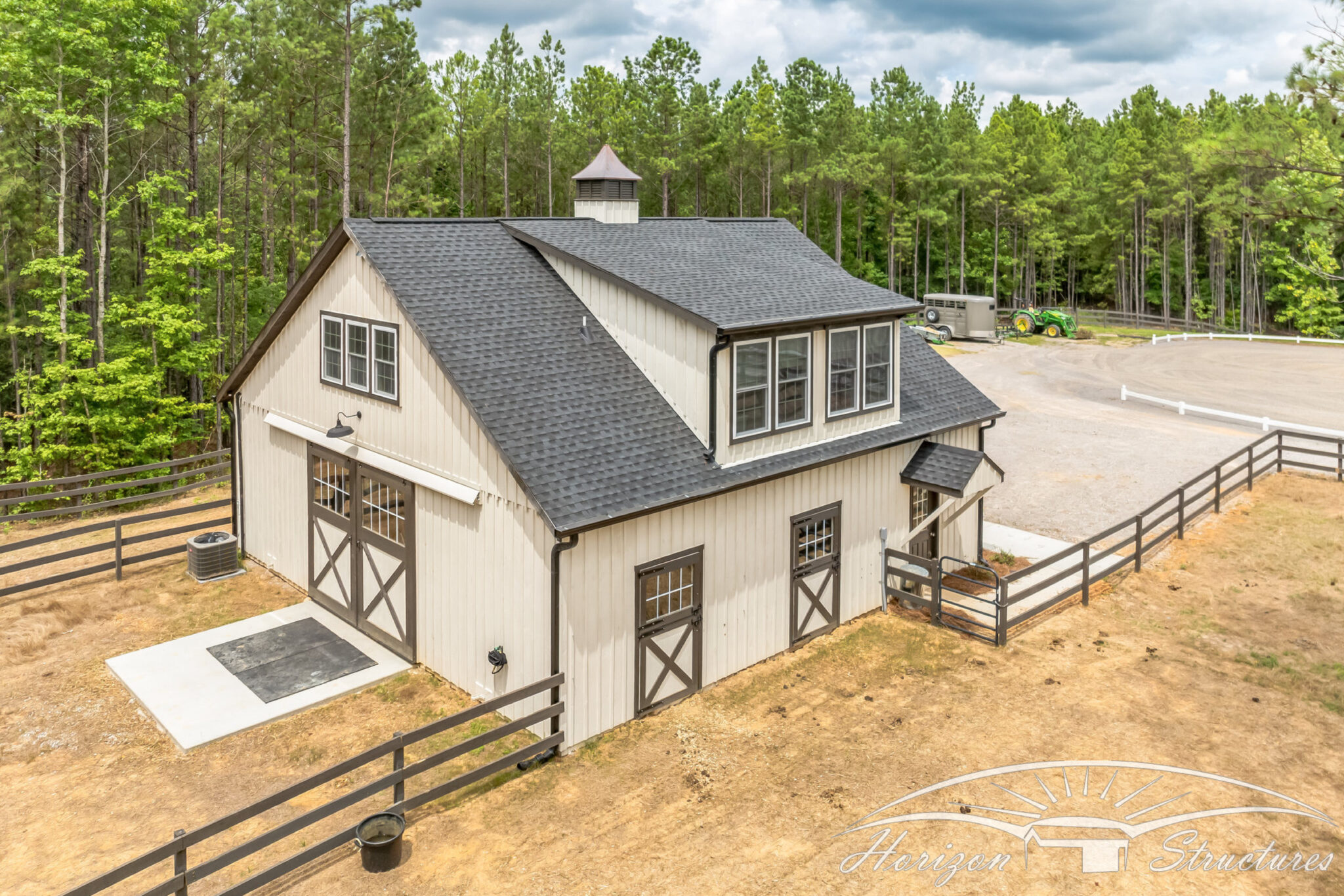

36x36 High Profile Barn with 10' Overhang

36x36 High Profile Barn with 10' Overhang
View floor plan

**Prices May Vary Depending on Location, Shipping Costs and Local Codes**


Hores Barn - 34x36 High Profile Barn with 8' Overhang & Duratemp Siding
34 x 46 High Profile Horse Barn with 8' Overhang & Duratemp Siding
See drawings

Important Information Regarding the High Profile Style Horse Barn:

  • Some of the horse barn plans shown on this page feature DURATEMP siding. Duratemp sided barns INCLUDE paint.  Stain is available for an extra charge.  See color choices HERE.
  • Board & Batten sided barns can be shipped from several locations throughout the United States.
  • Barn can be made into a garage or sold as an "empty shell" - Please call 1-888-44-SHEDS for a price quote.


NOTE: All Dutch doors will now be painted a solid color of your choice.  Match your barn or select a contrasting color.

Download "The Perfect Barn" Digital Catalog

Overhangs Available

Additional Info: Modular Horse Barn Options | Overhang Info | Site Preparation | Delivery | FAQ

All barn, run-in and stall dimensions referred to in our horse barn plans are OUTSIDE dimensions

Siding and / or kick board material may vary depending on locally available materials.
Horizon Structures reserve's the right to substitute white pine siding and / or oak kick board with materials best suited for optimal performance within your geographic region.
**Cypress siding may be substituted for white pine, in Southern and Western regions,
due to its moisture and insect resistant properties.
**Spruce may be substituted for oak kick board due to local availability.
