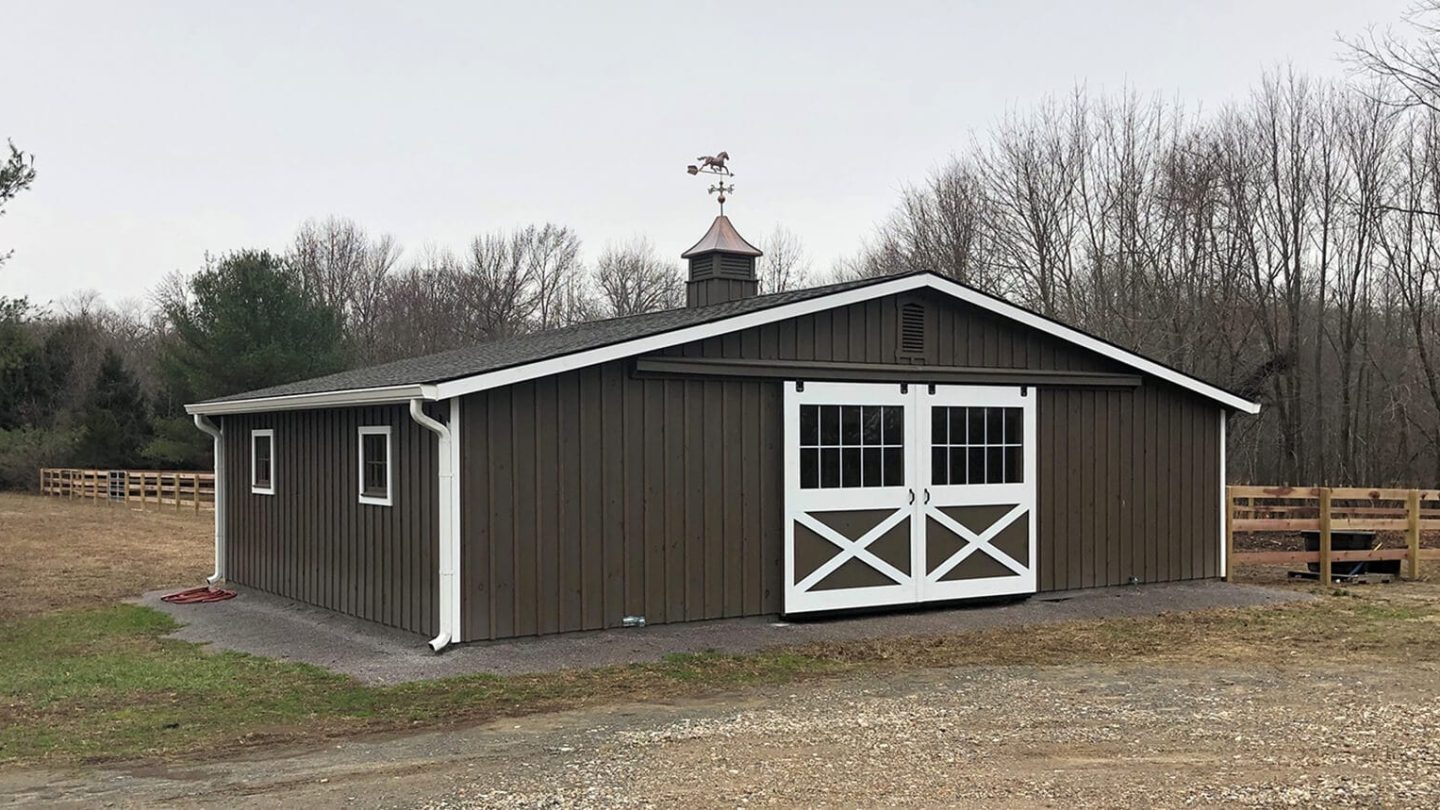

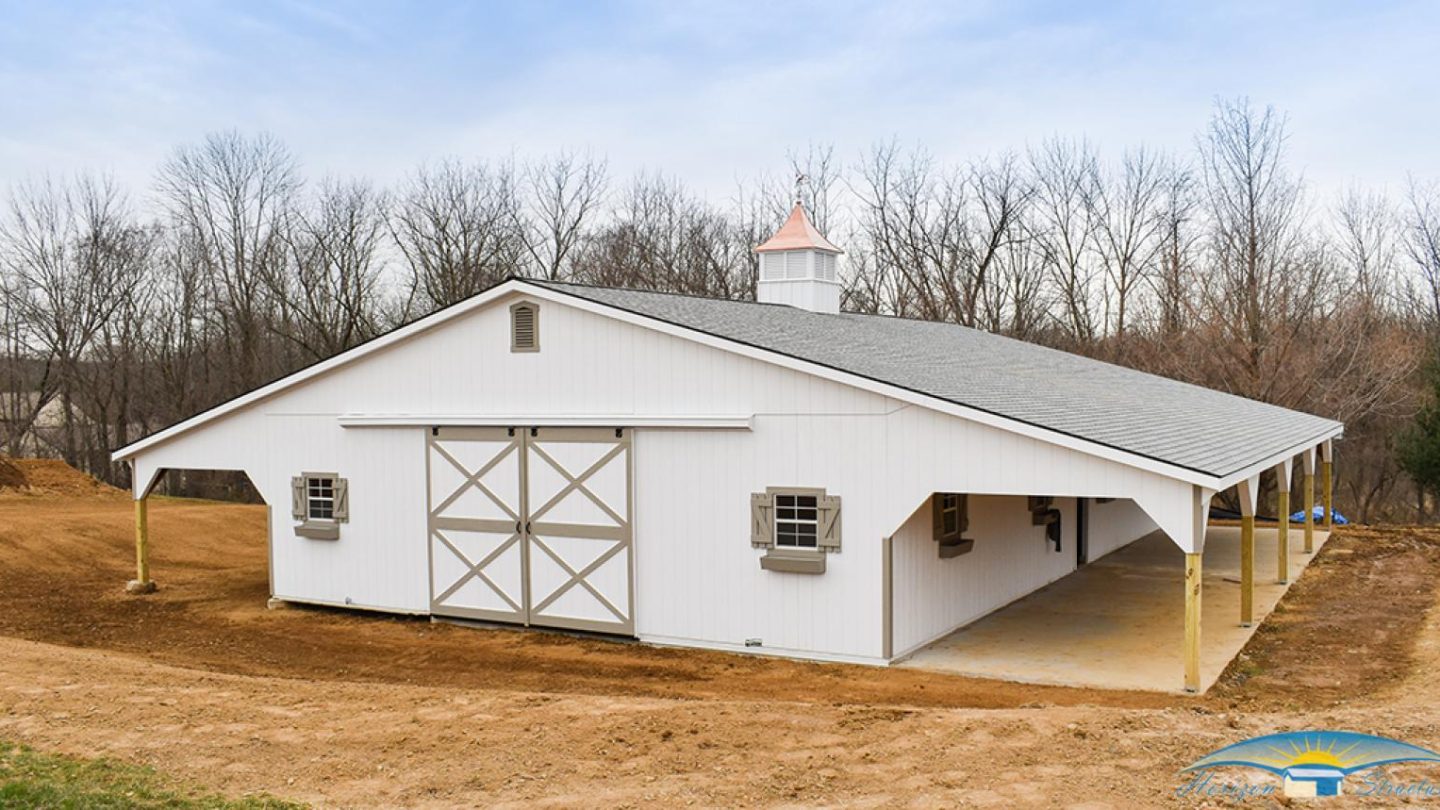

    low profile modular barn
    17-36x24-low-profile-modular-barn

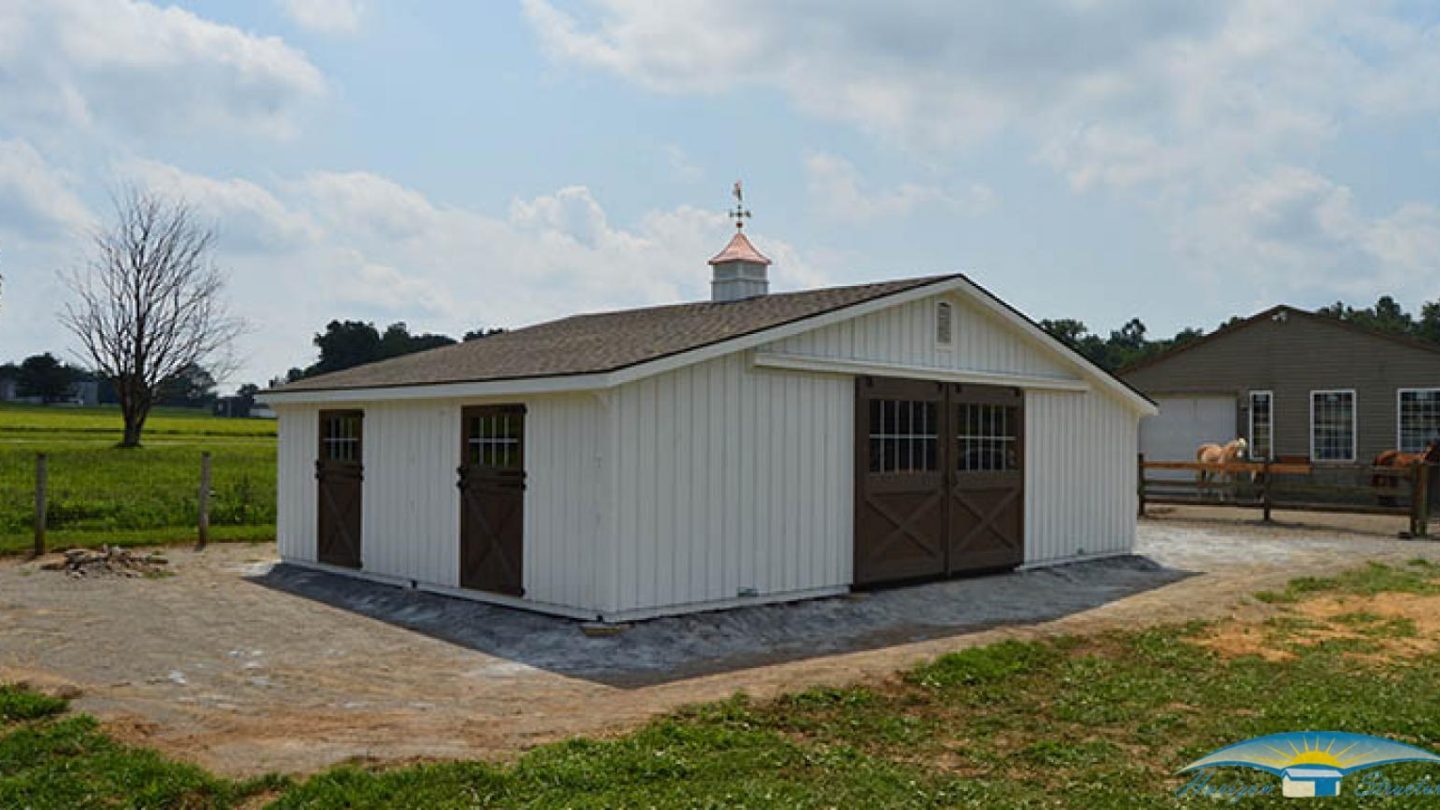

    DSC_6458

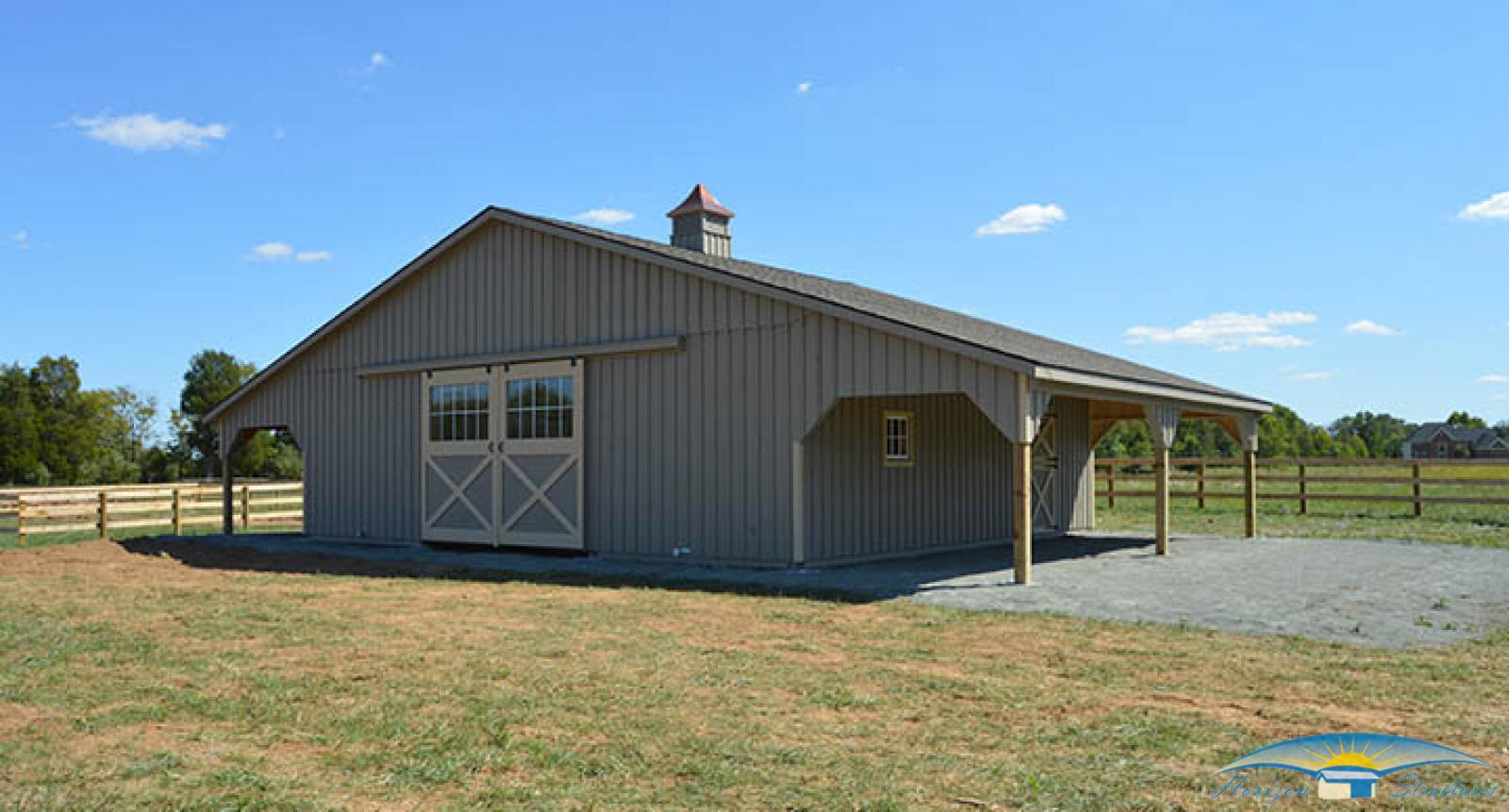

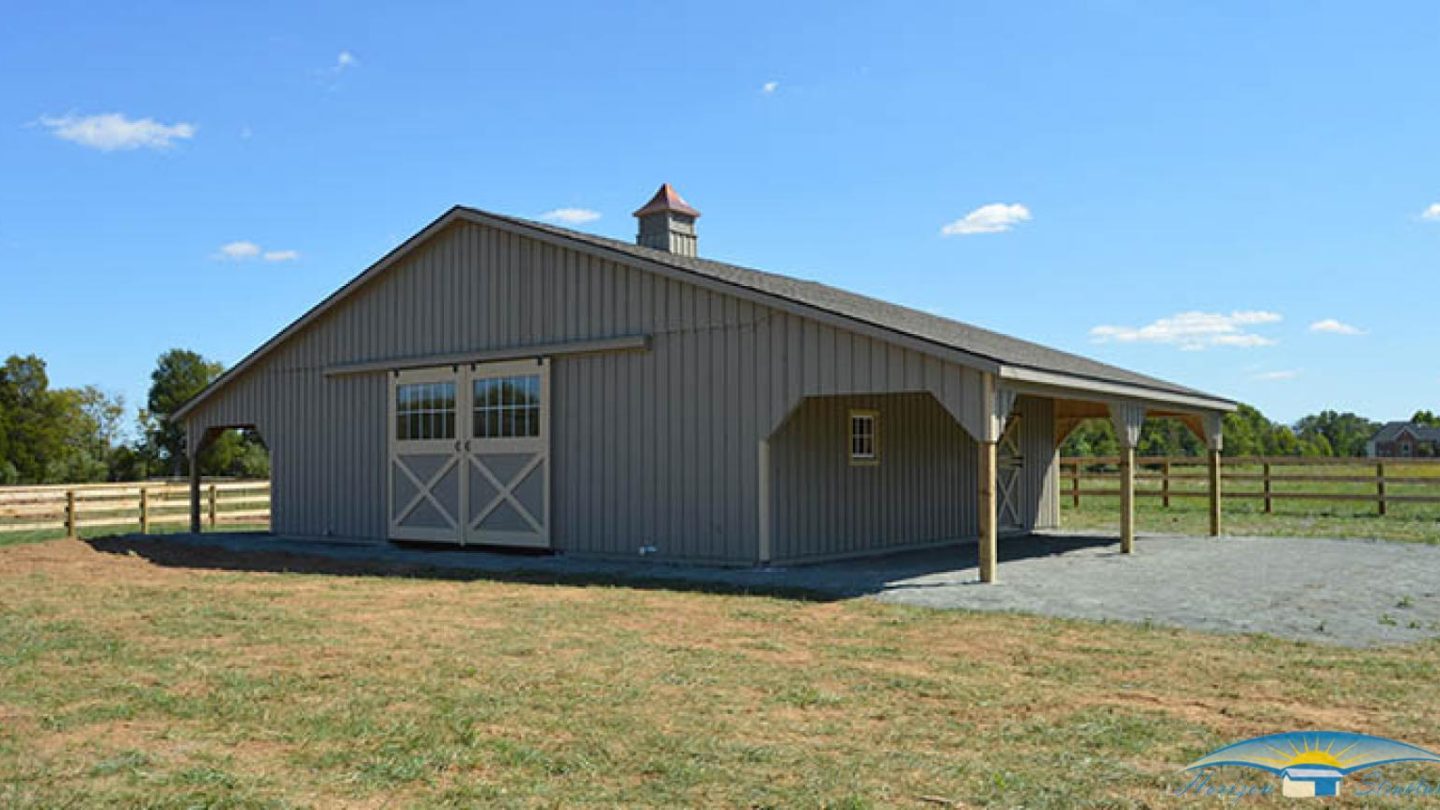

    DSC_6599
    horses-inside-low-profile-barn
    Previous
    Next

    Low Profile Modular Barns

    At Horizon Structures, our low profile  modular barns are designed for those who don’t need a loft, with a 4/12 pitch roof. The low profile’s ground-level storage can eliminate the time and energy spent running up and down stairs to get hay. This low-profile prefabricated modular horse barn is great for anyone who want’s to keep everything on the same level. Another big advantage of the low profile is extremely cost effective. Furthermore, since it’s only a single-story building the low profile won’t overwhelm a smaller property.

    As you can see, the board and batten low profile to your left complements the landscape and gives plenty of room for all of your horses.

    The low profile modular horse barn is the most economical choice for horse owners wanting a center aisle Horse Barn.

    Incorporate horse barn stalls / tack room / wash stall – You decide on the room sizes and layout.

    The Low Profile 2, 3, 4, or 6-stall horse barn can have an overhang / lean-to added to one side or both!

    • 10' or 12' Center Aisle
    • Incorporate an Enclosed Tack/Feed Room or an Open Storage Area
    • Add a Wash Stall
    • Same List of Standard Features as Our Other Modular Horse Barn Styles
    Create Your Own 3D Drawing – Try it Here

    Virtual Tours

    Links & Docs

    Watch a video of the delivery and setup of a 36×24 Raised Center Aisle Low Profile Modular Barn!
    Part 1 | Part 2

    Features

    SIDING CHOICE: 7/16″ LP SmartSide (with Silver Tech) Wood Exterior Siding (painted) OR *Pine Board & Batten Exterior (unfinished)

    • 4' Oak Kickboard
    • All Hardware: Horse Head Door Latches, Hinges, etc.
    • 2x8 Pine Tongue and Groove in Aisle
    • Split Sliding Aisle Doors Both Ends

    Stalls Include:

    • Grill Stall Front with Sliding Stall Door
    • Window with Powder-Coated Steel Bars
    • Solid or Powder-Coated Steel Grill Partition
    • 4' High Oak Kickboard

    Tack/Feed Room Includes

    • Lockable Service Door
    • Window
    • Wood Floor

    Specifications

    • Pressure Treated 6x6 Perimeter
    • 2x4 Wall Studs, 16" On Center (LP SmartSided Barns)
    • 1/2" Plywood Sheeting from Top of Kick Board to Top of Wall (LP SmartSided Barns)
    • 2x4 Solid Oak Post & Beam Frame (Board & Batten Barns)
    • 2x6 Floor Joist, 16" On Center
    • 2x6 Rafters, 16" On Center
    • 7/16" Wood Roof Sheathing
    • 15 lb. Tar Paper
    • 30 Year Architectural Shingles

    *Pine OR Optional Cypress Board & Batten Siding is determined based on shipping location

    All barn, run-in and stall dimensions referred to on this site are OUTSIDE dimensions

    Cypress
    • Pressure Treated 6x6 Perimeter
    • Steel Re-enforced Corners with Built-In Tow Hooks
    • Cypress Exterior (unfinished)
    • 2x4, Post & Beam Frame
    • 4’ High Oak Kick Board in Stalls 2x4 Rafters 16’’ OC
    • 7/16’’ OSB Roof Sheathing
    • 2x8 Tongue & Groove Aisle Walls
    • All Hardware Horse Head Door Latches, Hinges, etc.
    • 30 Year Architectural Shingles

    Stalls Include

    • Grill Front(s) w/Sliding Door Fronts
    • Window with Powder-Coated Steel Bars
    • Solid or Grill Partition
    • Split Sliding Door's – Each End of Aisle

    Tack/Feed Room Includes

    • Service Door
    • Slider Window
    • 5/8” Plywood Floor
    3-stall barn with tack room
    Read Why the Low Profile Barn is a Best Seller
    A Very Satisfied Customer...
    Hi Dave and Matt! Can't thank you enough for everything, everyone is in awe of the barn, quality and workmanship etc. we love our barn! And please tell Matt, I really appreciate all his emails during the planning of the barn and making the necessary changes i wanted. You are very lucky to have him in your company! Can't say enough good about your company and employees from start to finish, everyone was professional , polite and a joy to deal with!
    Jane G, Griswold, CT

    Here's How It's Done...

    Step 1

    The pre-built sections arrive to your location while you sip your coffee.

    Step 2

    Our men add the rafters and get ready to finish the roof.

    Step 3

    The outside aisle doors and stall doors are hung to finish the job.

    Don’t forget! Site prep is done by the customer prior to delivery of the low profile modular horse stalls.
    Cement pillars are required for a modular horse barn in order to ensure that the building stays level.
    Download "The Perfect Barn" Digital Catalog

    Sample Low Profile Horse Barn Layouts

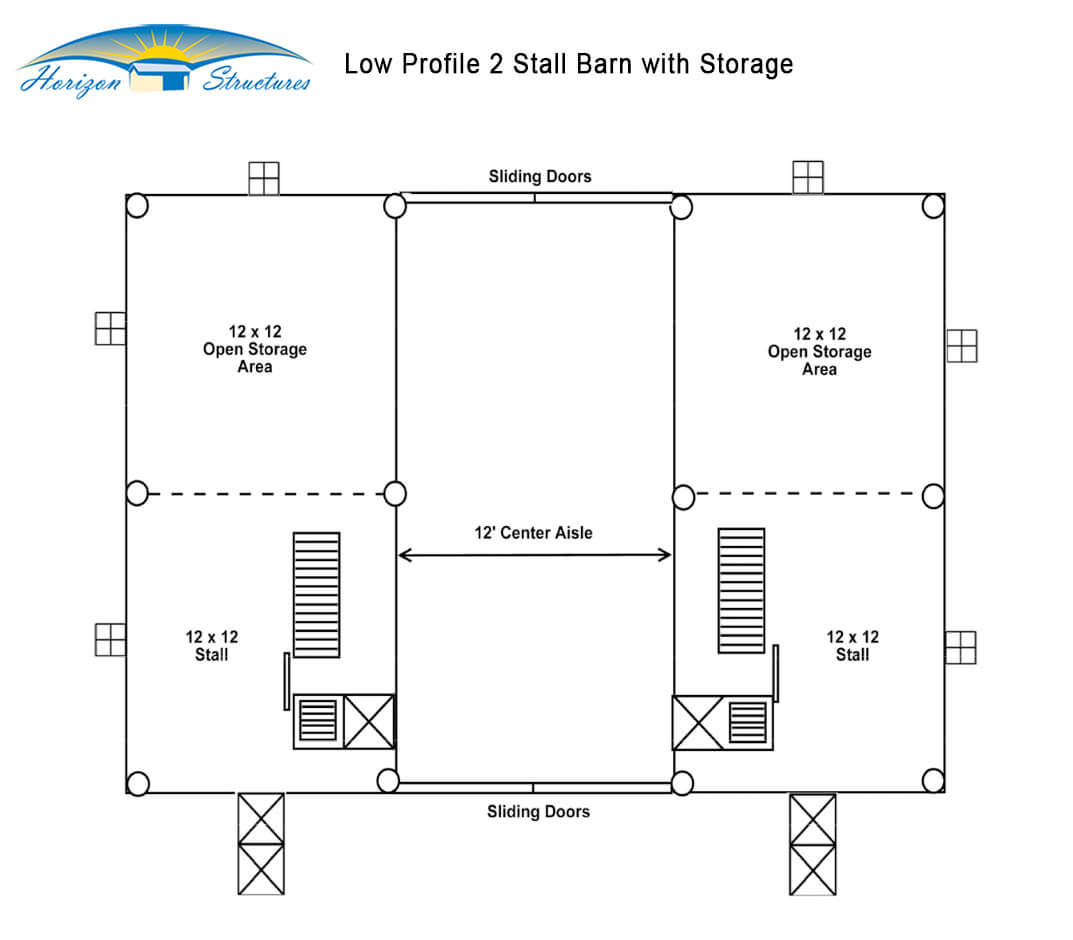

    2 Stall with Storage
    • 24 x 36 / 864 sq. ft
    • 12’ Center Aisle
    • 2 - 12x12 Stalls
    • 2 - Open Storage Areas
    3 Stall with Storage
    • 22 x 34 / 748 sq. ft.
    • 10’ Center Aisle
    • 2 -12x12
    • 1 - 10x12 Stalls
    • 1 - 10x12 Tack / Feed Room
    4 Stall with Tack Room & Hay Storage
    • 28 x 30 / 840 sq. ft.
    • 10’ Center Aisle
    • 4 – 10x10 Stalls
    • Inside & Outside Access to Stalls
    6 Stall
    • 36 x 52 / 1872 sq. ft
    • 4 – 12x14 Stalls
    • 2 12x12 Stalls
    • 12x12 Wash Bay
    • 12x12 Tack Room
    Low Profile Barn

    36 x 24 Low Profile Modular Barn
    Located in Robinsville, NJ

    * prices include ESTIMATED delivery / set-up charges

    Siding and / or kick board material may vary depending on locally available materials.

    Horizon Structures reserves the right to substitute white pine siding and / or oak kick board in your horse barn stalls with materials best suited for optimal performance within your geographic region.

    **Cypress siding may be substituted for white pine, in Southern and Western regions, due to its moisture and insect resistant properties.

    **Spruce may be substituted for oak kick board due to local availability.

    ** Prices May Vary Depending on Location, Shipping Costs and Local Codes **
    NOTE: All Dutch doors will now be painted a solid color of your choice. Match your barn or select a contrasting color.
    Download "The Perfect Barn" Digital Catalog

    NOTE: All barn, run-in and stall dimensions referred to on this site are OUTSIDE dimensions
